• 32D32 Wrapped Steel Bush 2x2-3/16x2 inch
1 1

SKU: 32.DLU.32

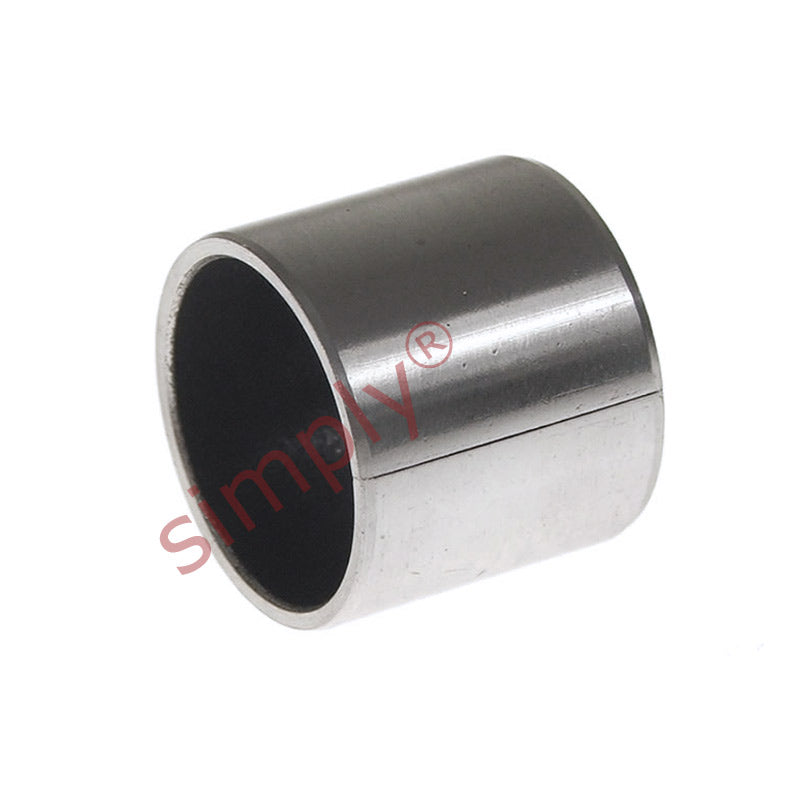

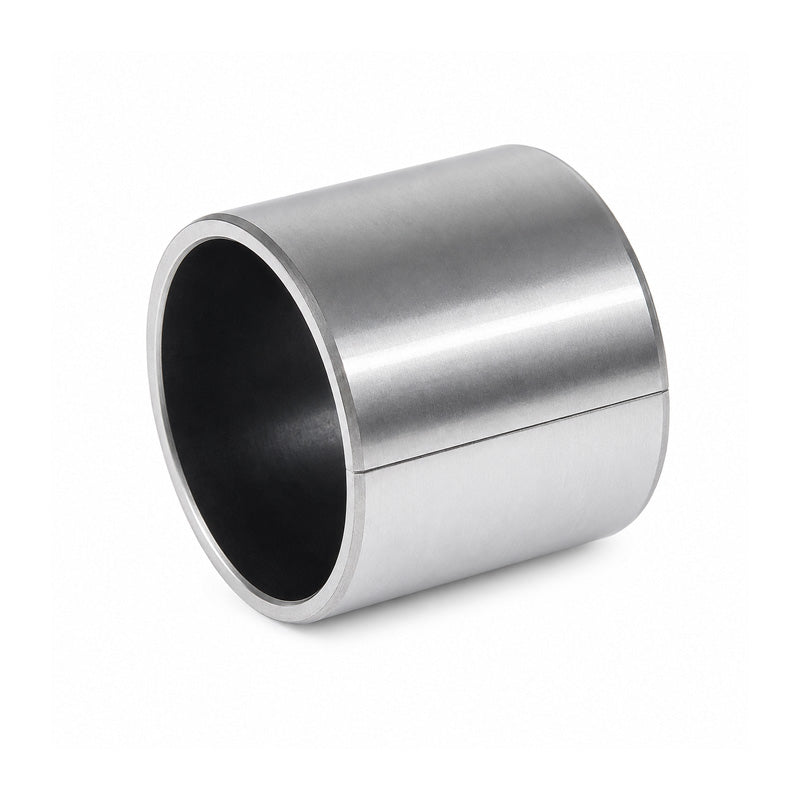

32D32 Wrapped Steel Bush 2x2-3/16x2 inch

32D32 Wrapped Steel Bush 2x2-3/16x2 inch
$8.61 ex VAT
$8.61 ex VAT
Sale Sold out

Equivalent to: PAPZ3232P10

In stock

Price Break
9+ $5.77
19+ $5.44
29+ $5.38
39+ $5.31
49+ $5.25
69+ $5.18
99+ $4.86
199+ $4.79
249+ $4.73
499+ $4.67
999+ $4.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Wrapped Steel Bushes - High Quality
Inside Diameter:
50.8mm = 2 inch
Outside Diameter:
55.56mm = 2.187 (2-3/16) inch
Length:
50.8mm = 2 inch
Technical
d 2 inch
D 2-3/16 inch
b 2 inch
Structure Steel support strip S.A.E 1010. Sintered bronze layer. PTFE and lead combination
Maximum static load 250 N/mm<sup>2</sup>
Maximum dynamic load 140 N/mm<sup>2</sup>
Maximum sliding speed 2.5m/s dry 5.0m/s with oil
Operating temperature -200&deg; C to +280&deg; C
Thermal conductivity 46 W/mk
Coefficient of friction (dry) 0.02 to 0.20
Coefficient of friction (oil lubricated) 0.02 to 0.15
Recommended housing tolerance 4.5mm/5.5mm H6<br>7.0mm/305mm H7
Recommended shaft tolerance 3.0mm/4.0mm h6<br>5.0mm/75mm f7<br>80mm/300mm h8
Recommended shaft finish Ra &le; 0.4um (N5)
Recommended shaft hardness HB &gt; 200
