SKU: 32.DLU.40

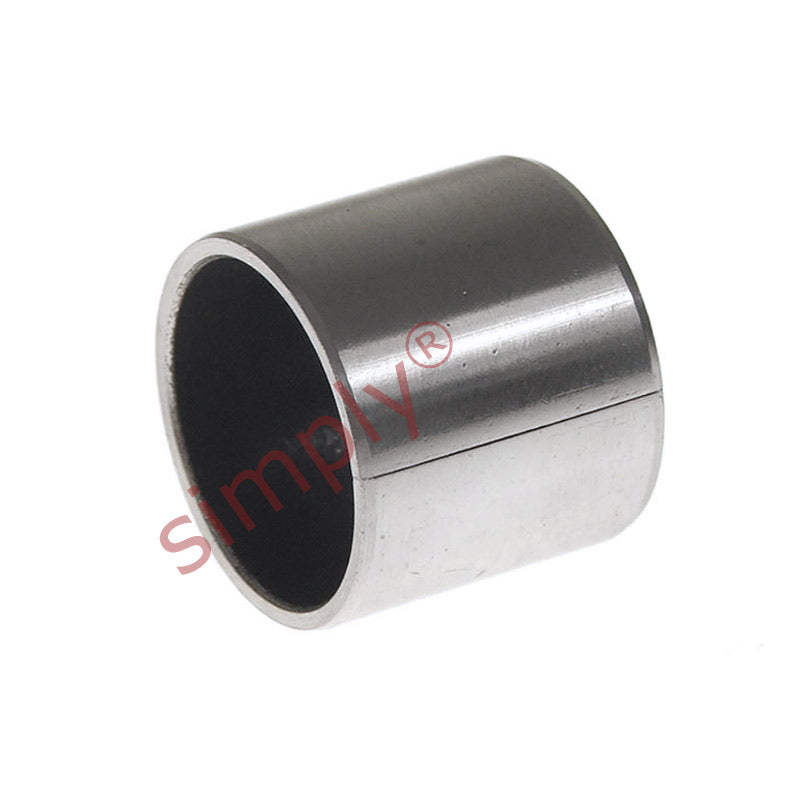

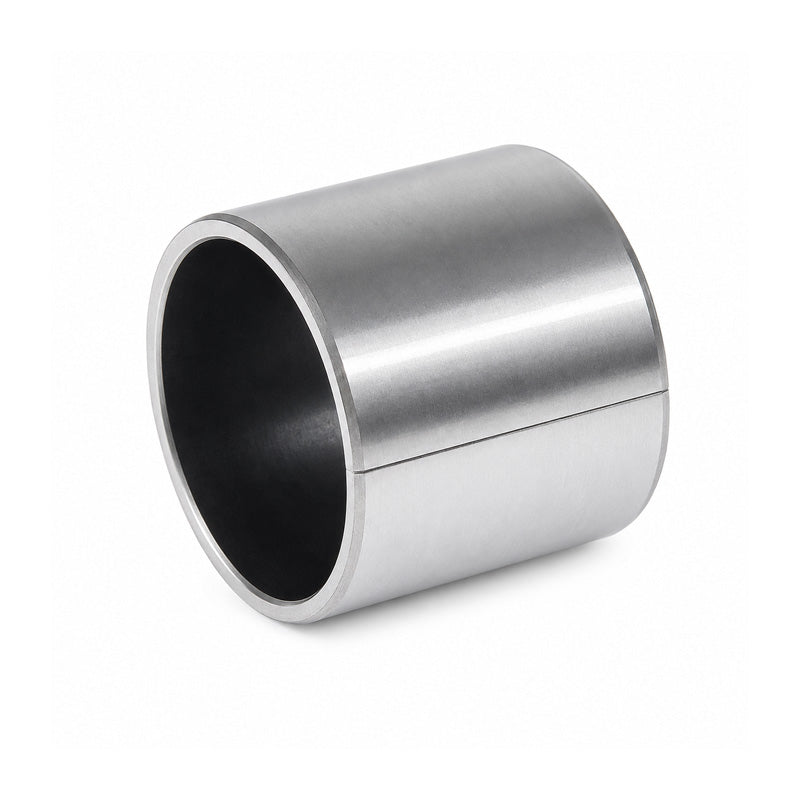

32D40 Wrapped Steel Bush 2x2-3/16x2-1/2 inch

Name: 32D40 Wrapped Steel Bush 2x2-3/16x2-1/2 inch
Brand: Simply Wrapped Steel Bushes
SKU: 32.DLU.40
Price: 9.71 USD
Availability: InStock

$9.71 ex VAT

Sale Sold out

Equivalent to: PAPZ3240P10

In stock

Price Break

9+ $6.51

19+ $6.14

29+ $6.07

39+ $6.00

49+ $5.93

69+ $5.85

99+ $5.49

199+ $5.41

249+ $5.34

499+ $5.27

999+ $5.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply Wrapped Steel Bushes - High Quality
Inside Diameter:: 50.8mm = 2 inch
Outside Diameter:: 55.56mm = 2.187 (2-3/16) inch
Length:: 63.5mm = 2.5 (2-1/2) inch

Technical

d	2 inch
D	2-3/16 inch
b	2-1/2 inch
Structure	Steel support strip S.A.E 1010. Sintered bronze layer. PTFE and lead combination
Maximum static load	250 N/mm<sup>2</sup>
Maximum dynamic load	140 N/mm<sup>2</sup>
Maximum sliding speed	2.5m/s dry 5.0m/s with oil
Operating temperature	-200° C to +280° C
Thermal conductivity	46 W/mk
Coefficient of friction (dry)	0.02 to 0.20
Coefficient of friction (oil lubricated)	0.02 to 0.15
Recommended housing tolerance	4.5mm/5.5mm H6<br>7.0mm/305mm H7
Recommended shaft tolerance	3.0mm/4.0mm h6<br>5.0mm/75mm f7<br>80mm/300mm h8
Recommended shaft finish	Ra ≤ 0.4um (N5)
Recommended shaft hardness	HB > 200
