SKU: 3200ATN9-SKF

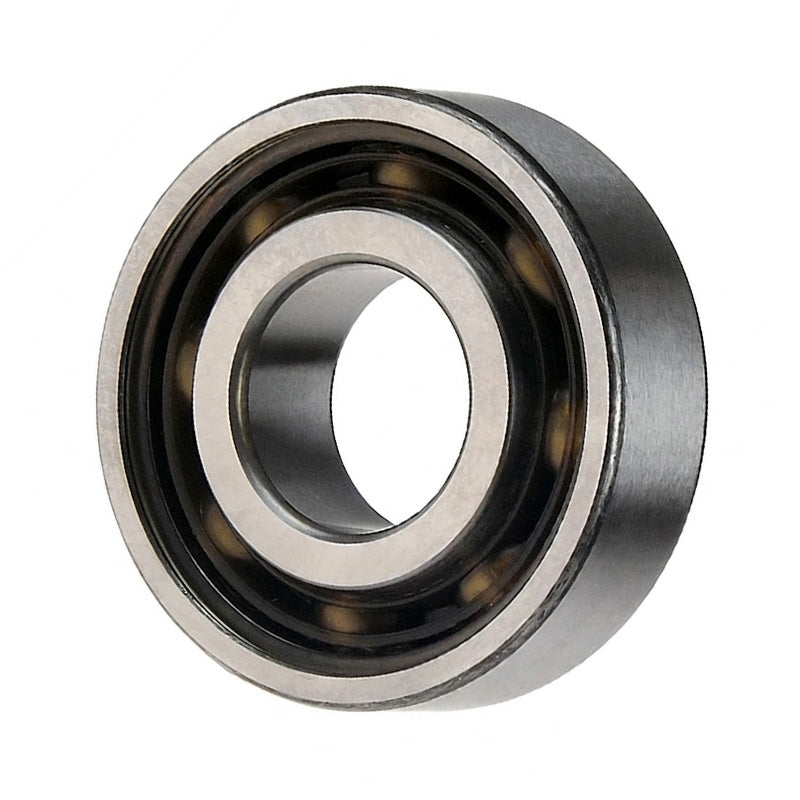

SKF 3200ATN9 Double Row Angular Contact Ball Bearing with Glass Fibre Reinforced Polyamide Cage 10x30x14mm
SKF 3200ATN9 Double Row Angular Contact Ball Bearing with Glass Fibre Reinforced Polyamide Cage 10x30x14mm
Regular price
$44.18
ex VAT
Regular price
Sale price
$44.18
ex VAT
Equivalent to: 5200
In stock
Price Break
4+
$29.59
8+
$27.93
12+
$27.60
16+
$27.27
25+
$26.93
50+
$26.60
99+
$24.94
199+
$24.61
249+
$24.27
499+
$23.94
999+
$23.28
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 10mm |
|---|---|
| D | 30mm |
| B | 14mm |
| Dynamic load Cr | 7.61 kN |
| Static load Cor | 4.3 kN |
| Fatigue load limit Pu | 0.183 kN |
| Reference speed | 22000 rpm |
| Limiting speed | 24000 rpm |
| Weight | 0.051 kg |
| d1 | 17.7mm |
| D1 | 23.6mm |
| r1r2 min | 0.6mm |
| a | 16mm |
| da min | 14.4mm |
| Da max | 25.6mm |
| ra max | 0.6mm |
