SKU: 32018X/Q-SKF

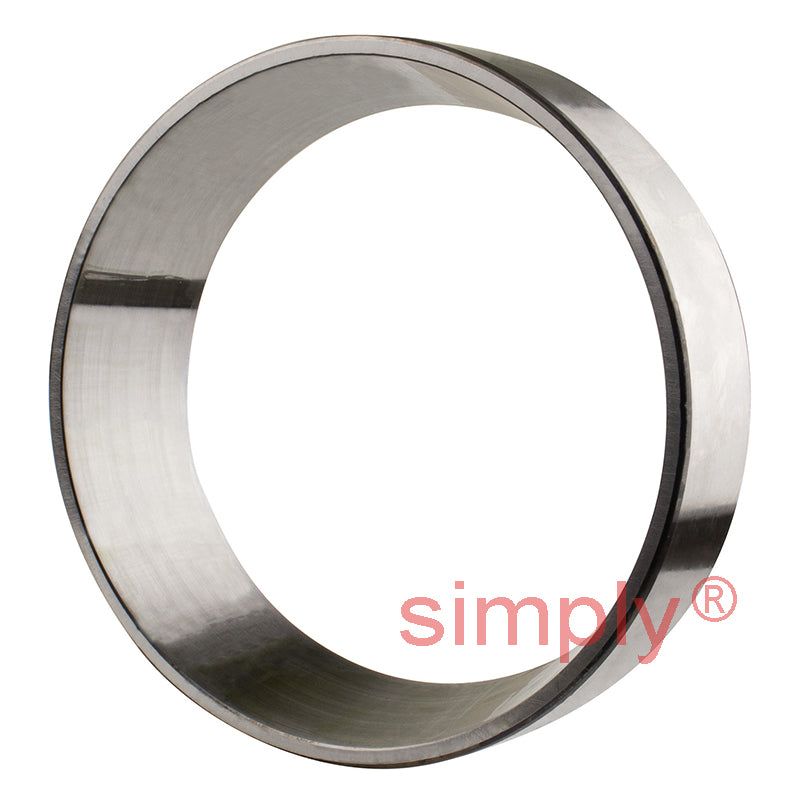

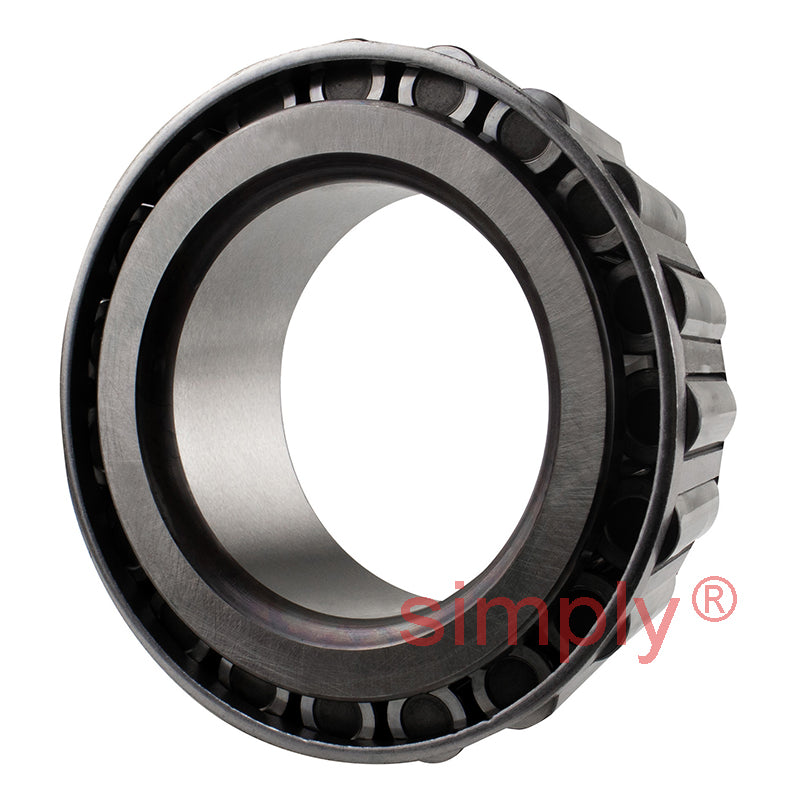

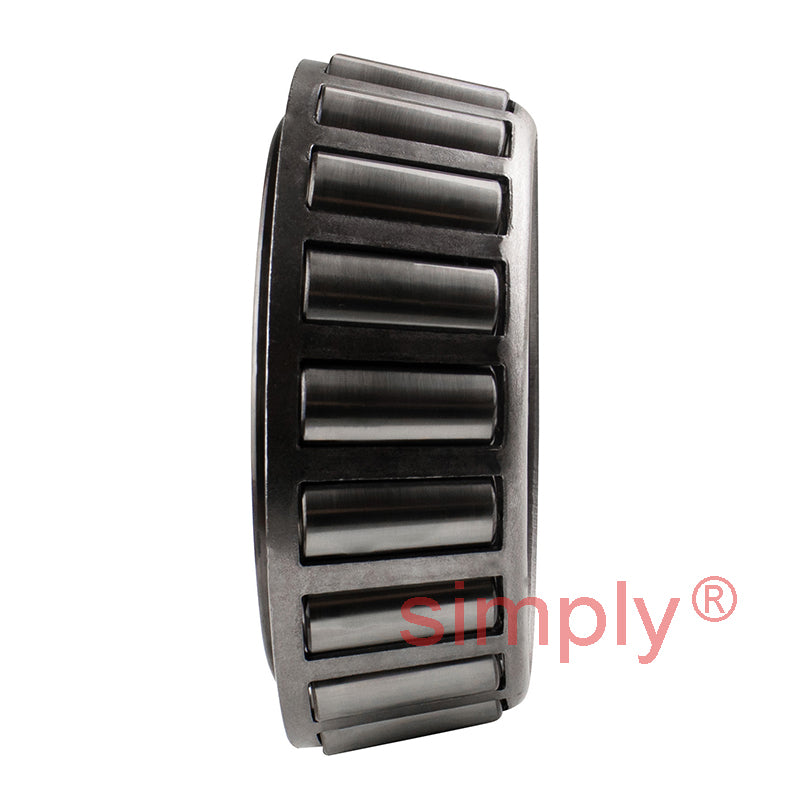

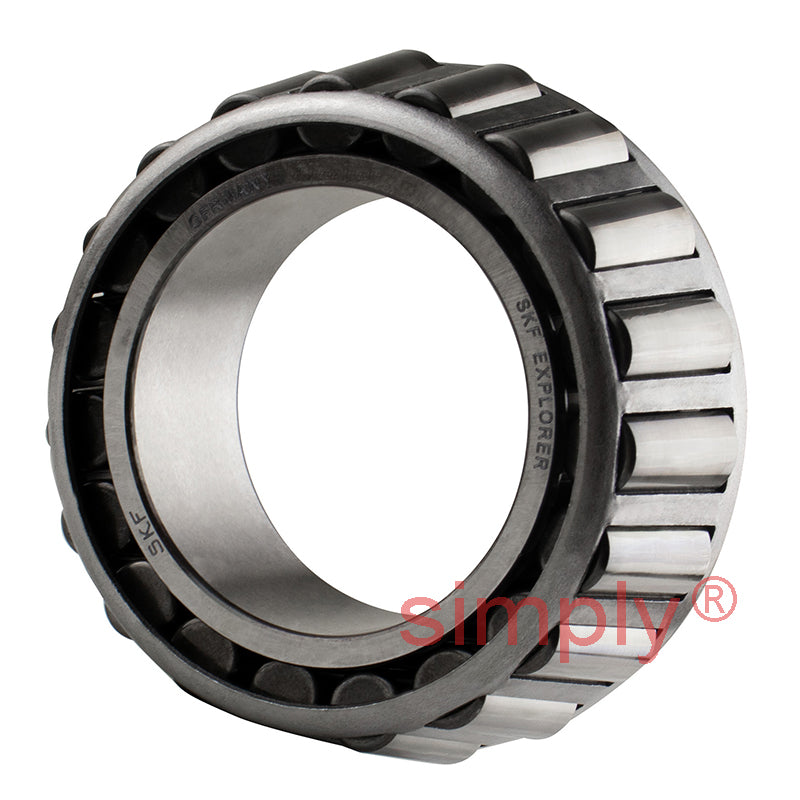

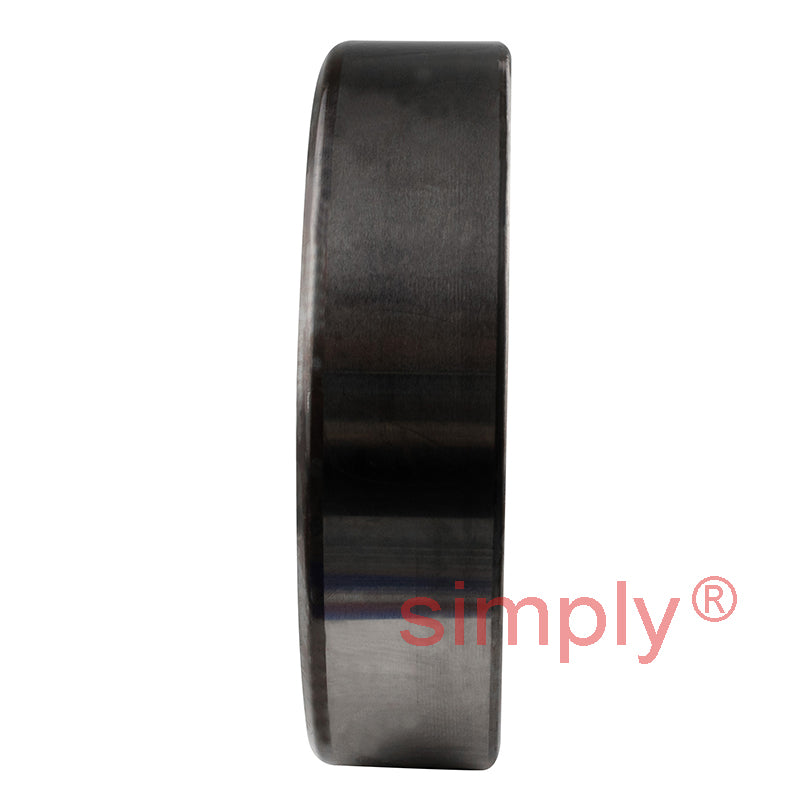

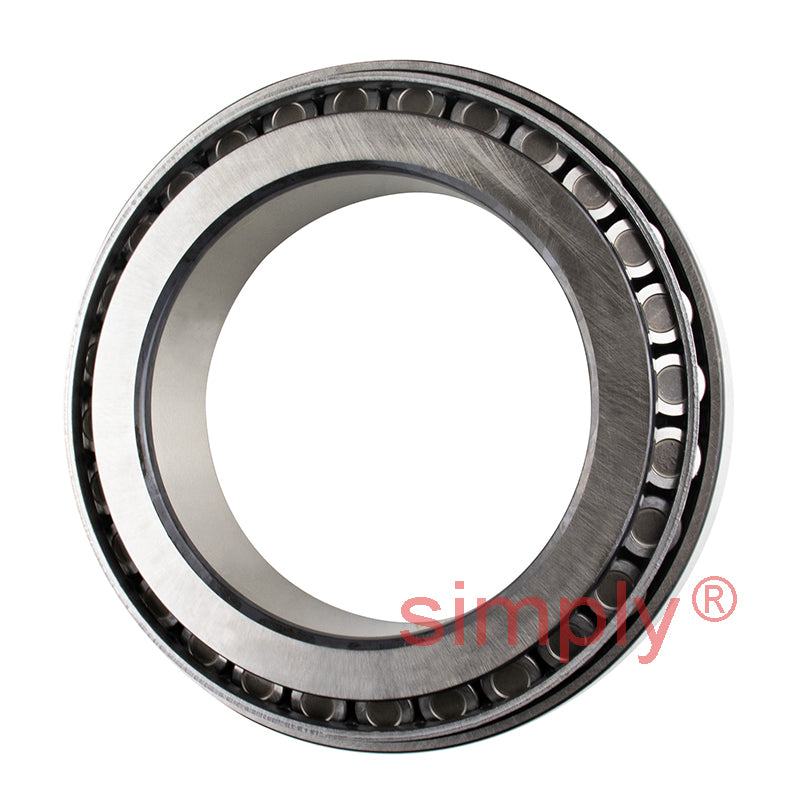

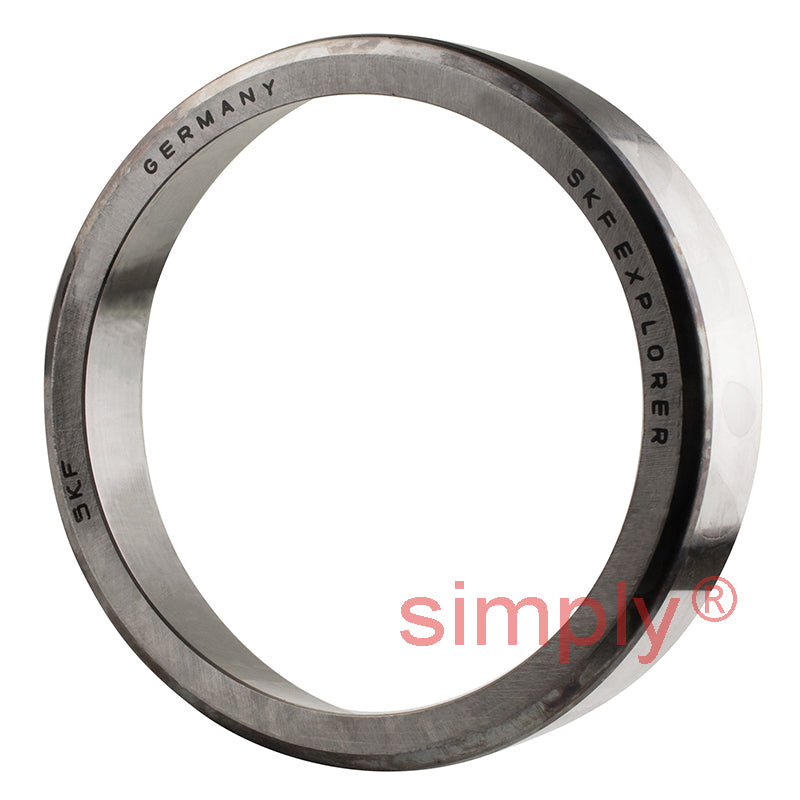

SKF 32018XQ Metric Single Row Taper Roller Bearing 90x140x32mm
SKF 32018XQ Metric Single Row Taper Roller Bearing 90x140x32mm
Regular price
$163.18
ex VAT
Regular price
Sale price
$163.18
ex VAT
In stock
Price Break
10+
$109.30
19+
$103.16
29+
$101.93
39+
$100.71
49+
$99.48
74+
$98.25
99+
$92.11
199+
$90.88
249+
$89.65
499+
$88.42
999+
$85.97
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 140mm
- Width:
- 32mm
- Seals / Shields:
- None
Technical
Technical
| d | 90mm |
|---|---|
| D | 140mm |
| T | 32mm |
| Dynamic load | 168 kN |
| Static load | 270 kN |
| Fatigue load limit Pu | 31 kN |
| Reference speed | 3200 rpm |
| Limiting speed | 4300 rpm |
| Weight | 1.75 kg |
| d1 | 115mm |
| B | 32mm |
| C | 24mm |
| r1r2 min | 2mm |
| r3r4 min | 1.5mm |
| a | 30mm |
| da max | 100mm |
| db min | 98mm |
| Da min | 125mm |
| Da max | 132mm |
| Db min | 134mm |
| Ca min | 6mm |
| Cb min | 8mm |
| ra max | 2mm |
| rb max | 1.5mm |
| Calculation factor e | 0.43 |
| Calculation factor Y | 1.4 |
| Calculation factor Y0 | 0.8 |
