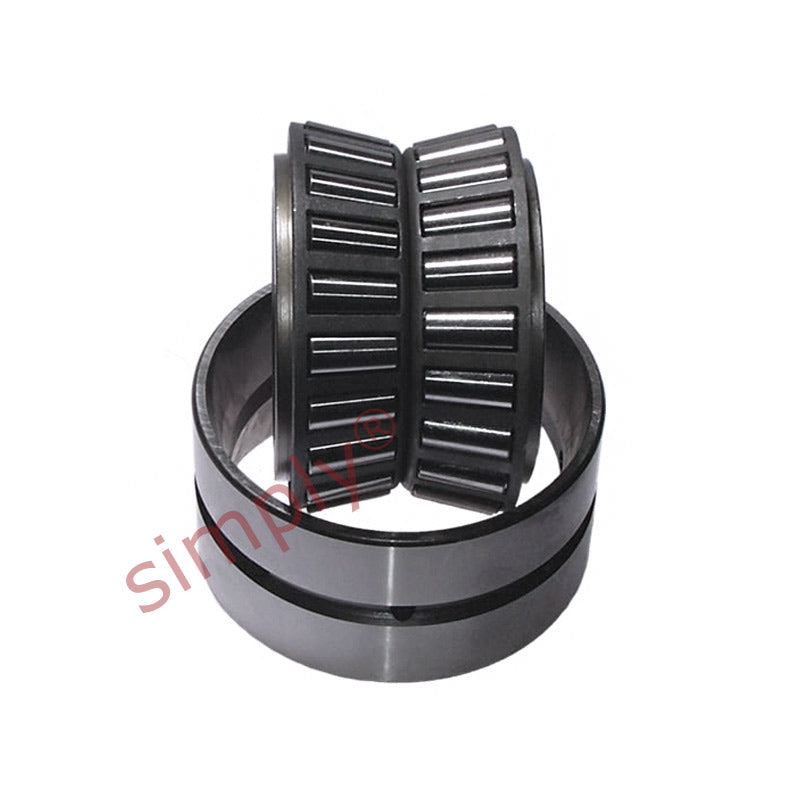

• SKF 32018X/QDF Single Row Taper Roller Bearings Paired Face to Face 90x140x64mm
1 1

SKU: 32018X/QDF-SKF

SKF 32018X/QDF Single Row Taper Roller Bearings Paired Face to Face 90x140x64mm

SKF 32018X/QDF Single Row Taper Roller Bearings Paired Face to Face 90x140x64mm
$1,027.30 ex VAT
$1,027.30 ex VAT
Sale Sold out

In stock

Price Break
10+ $688.11
19+ $649.45
29+ $641.72
39+ $633.99
49+ $626.26
74+ $618.53
99+ $579.87
199+ $572.14
249+ $564.41
499+ $556.67
999+ $541.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery.
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
90mm
Outside Diameter:
140mm
Width:
64mm
Seals / Shields:
None
Technical
d 90mm
D 140mm
T 64mm
Dynamic load 292 kN
Static load 540 kN
Fatigue load limit Pu 62 kN
Reference speed 2600 rpm
Limiting speed 4300 rpm
Weight 3.65 kg
2B 64mm
r3r4 1.5mm
r5 0.6mm
da max 100mm
da min 125mm
Da max 132mm
Ca min 6mm
ra max 1.5mm
rc max 0.6mm
Calculation Factor e 0.43
Calculation Factor Y1 1.6
Calculation Factor Y2 2.3
Calculation Factor Y0 1.6
