SKU: 3202-2RS-EU

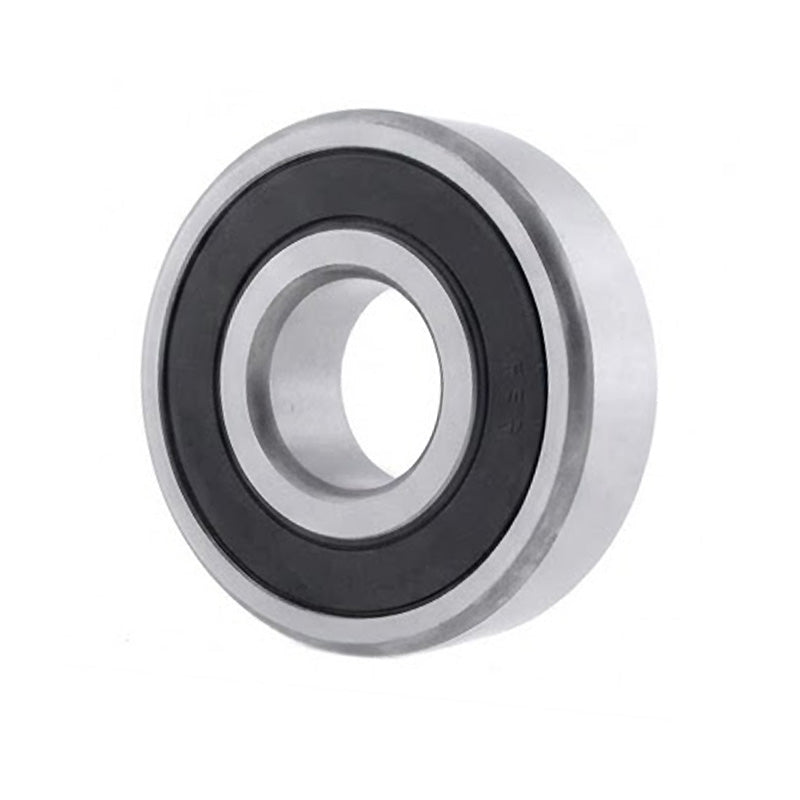

32022RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 15x35x15.9mm
32022RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 15x35x15.9mm
Regular price
$22.15
ex VAT
Regular price
Sale price
$22.15
ex VAT
In stock
Price Break
10+
$14.84
19+
$14.00
29+
$13.84
39+
$13.67
49+
$13.50
74+
$13.34
99+
$12.50
199+
$12.34
249+
$12.17
499+
$12.00
999+
$11.67
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DRACS1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 15.9mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 15.9mm |
| Dynamic load C | 11.2 kN |
| Static load Co | 6.8 kN |
| Fatigue load limit Pu | 0.285 kN |
| Reference speed | 14000 rpm |
| Weight | 0.066 kg |
| d1 | 20.2mm |
| D1 | 30.7mm |
| r1r2 min | 0.6mm |
| a | 21mm |
| da min | 19.4mm |
| da max | 20mm |
| Da max | 30.7mm |
| ra max | 0.6mm |
