SKU: 32028AK-NILOS
32028XAK Nilos Ring for 32028 Series Bearings 140x219x5mm - Allow 2-3 Days
32028XAK Nilos Ring for 32028 Series Bearings 140x219x5mm - Allow 2-3 Days
Regular price
$73.51
ex VAT
Regular price
Sale price
$73.51
ex VAT
In stock
Price Break
10+
$54.77
19+
$52.55
29+
$51.45
39+
$49.79
49+
$48.68
74+
$45.92
99+
$38.72
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description

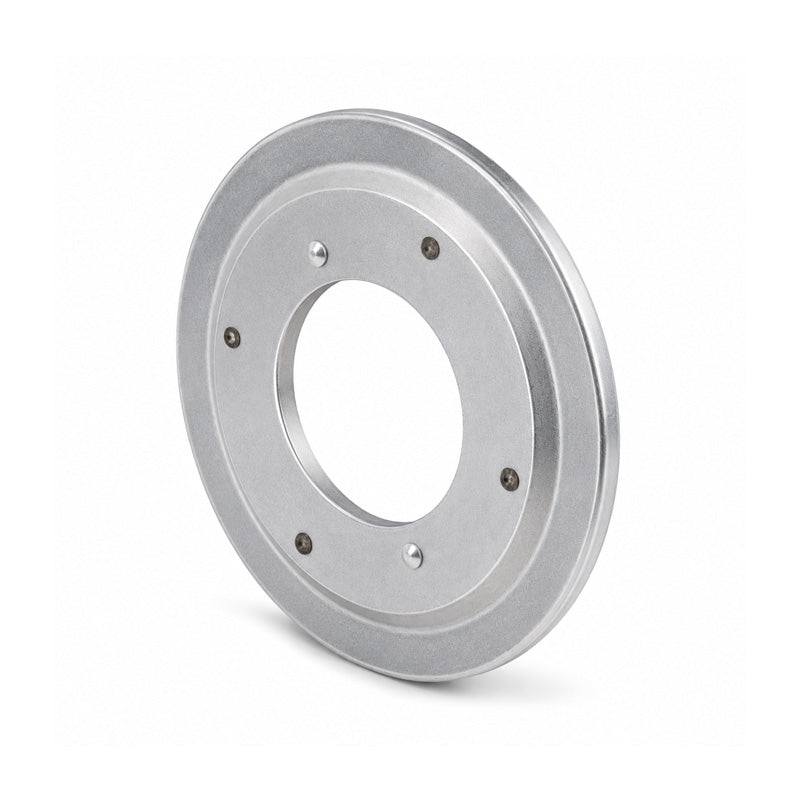

Nilos AK Sealing Rings: A Nilos ring that seals the outer ring of a tapered roller bearing. The unique two-disk design enables double-sealing of the bearing's outer ring.
Nilos rings are required in particular installations where excess dirt or debris may be present that could penetrate the bearing, if some further mechanical protection is required or if condensation is formed.
- Brand / Quality:
- Nilos - High Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 219mm
- Width:
- 5mm
- Thickness:
- 0.5mm
- Item Type:
- AK Nilos Ring
Technical
Technical
| Fits Bearing | 32028 |
|---|---|
| Bearing id | 140mm |
| Bearing od | 210mm |
| Bearing width | 34mm |
| a1 | 206mm |
| a2 | 219mm |
| c | 179mm |
| d | 140mm |
| w | 160mm |
| h | 5mm |
| s1 | 0.5mm |
| s2 | 0.5mm |
| G | 222mm |
| g | 210mm |
| t | 45.7mm |
