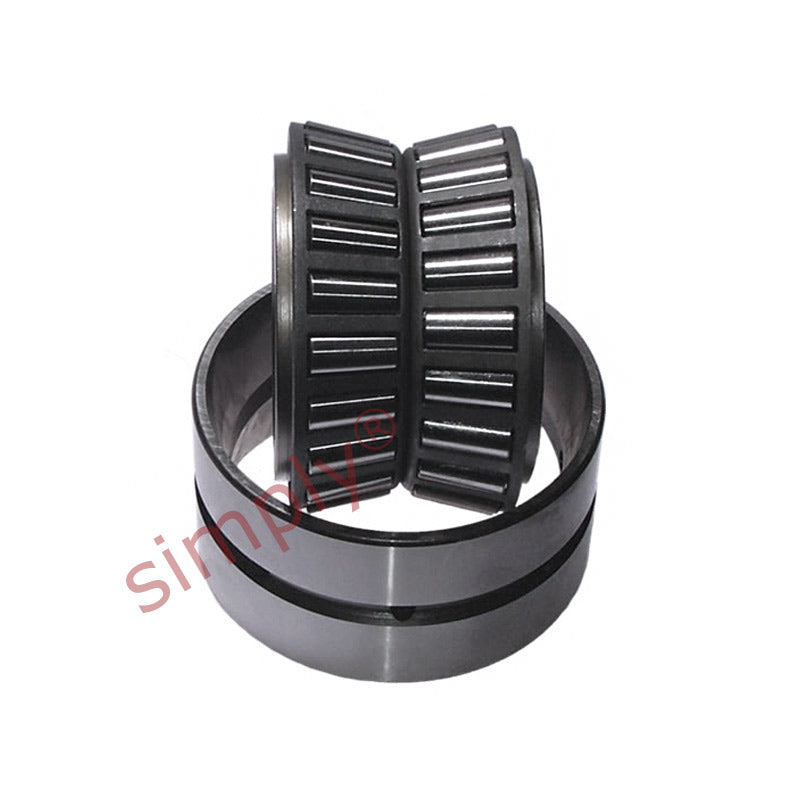

• SKF 32028X/DF Single Row Taper Roller Bearings Paired Face to Face 140x210x90mm
1 1

SKU: 32028X/DF-SKF

SKF 32028X/DF Single Row Taper Roller Bearings Paired Face to Face 140x210x90mm

SKF 32028X/DF Single Row Taper Roller Bearings Paired Face to Face 140x210x90mm
$2,321.34 ex VAT
$2,321.34 ex VAT
Sale Sold out

In stock

Price Break
10+ $1,554.90
19+ $1,467.55
29+ $1,450.08
39+ $1,432.61
49+ $1,415.14
74+ $1,397.67
99+ $1,310.31
199+ $1,292.84
249+ $1,275.37
499+ $1,257.90
999+ $1,222.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery.
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
140mm
Outside Diameter:
210mm
Width:
90mm
Seals / Shields:
None
Technical
d 140mm
D 210mm
T 90mm
Dynamic load 561 kN
Static load 1160 kN
Fatigue load limit Pu 116 kN
Reference speed 1700 rpm
Limiting speed 2800 rpm
Weight 11 kg
2B 90mm
r3r4 2mm
r5 0.6mm
da max 153mm
da min 187mm
Da max 200mm
Ca min 7mm
ra max 2mm
rc max 0.6mm
Calculation Factor e 0.46
Calculation Factor Y1 1.5
Calculation Factor Y2 2.2
Calculation Factor Y0 1.4
