SKU: 3203-2RS-EU

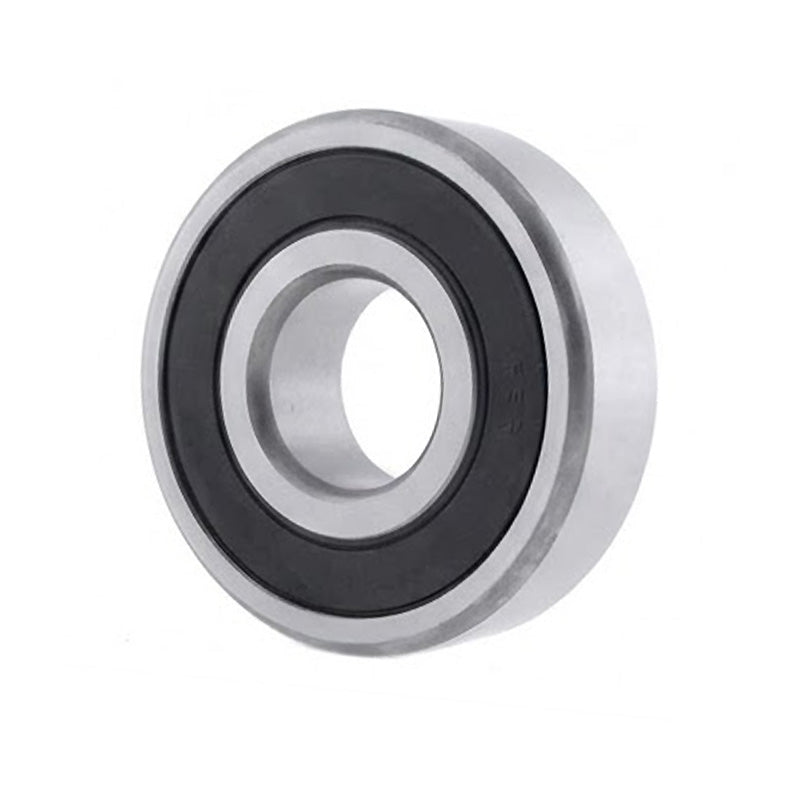

32032RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 17x40x17.5mm
32032RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 17x40x17.5mm
Regular price
$21.52
ex VAT
Regular price
Sale price
$21.52
ex VAT
In stock
Price Break
10+
$14.41
19+
$13.60
29+
$13.44
39+
$13.28
49+
$13.12
74+
$12.96
99+
$12.15
199+
$11.99
249+
$11.82
499+
$11.66
999+
$11.34
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DRACS1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 17.5mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 17.5mm |
| Dynamic load C | 14.3 kN |
| Static load Co | 8.8 kN |
| Fatigue load limit Pu | 0.365 kN |
| Reference speed | 12000 rpm |
| Weight | 0.1 kg |
| d1 | 23.3mm |
| D1 | 35mm |
| r1r2 min | 0.6mm |
| a | 23mm |
| da min | 21.4mm |
| da max | 23mm |
| Da max | 35.6mm |
| ra max | 0.6mm |
