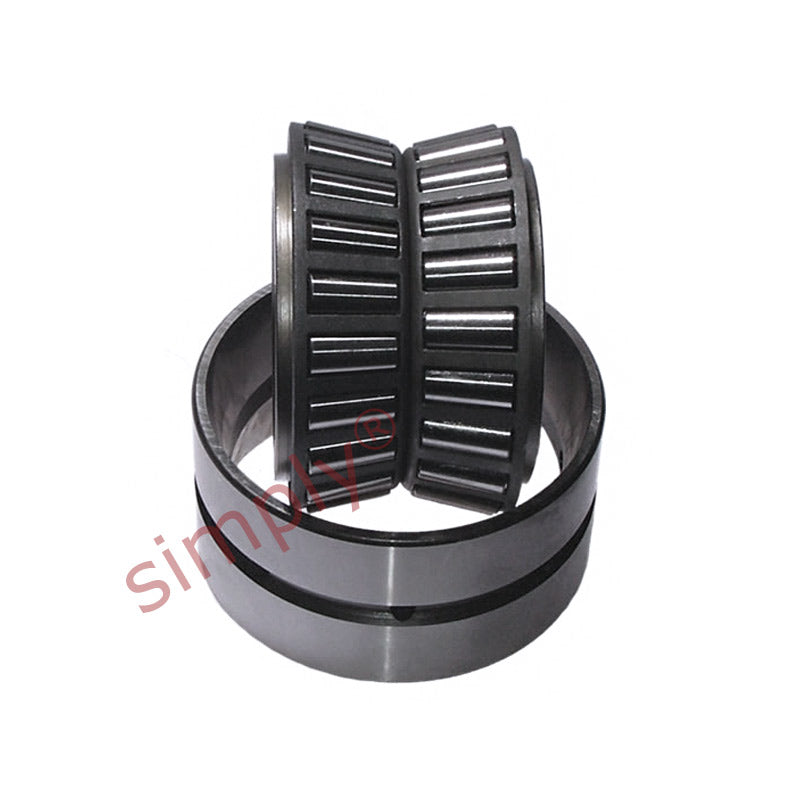

• SKF 32038X/DF Single Row Taper Roller Bearings Paired Face to Face 190x290x128mm
1 1

SKU: 32038X/DF-SKF

SKF 32038X/DF Single Row Taper Roller Bearings Paired Face to Face 190x290x128mm

SKF 32038X/DF Single Row Taper Roller Bearings Paired Face to Face 190x290x128mm
$6,373.29 ex VAT
$6,373.29 ex VAT
Sale Sold out

In stock

Price Break
10+ $4,269.02
19+ $4,029.18
29+ $3,981.22
39+ $3,933.25
49+ $3,885.29
74+ $3,837.32
99+ $3,597.49
199+ $3,549.52
249+ $3,501.55
499+ $3,453.59
999+ $3,357.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery.
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
190mm
Outside Diameter:
290mm
Width:
128mm
Seals / Shields:
None
Technical
d 190mm
D 290mm
T 128mm
Dynamic load 1120 kN
Static load 2400 kN
Fatigue load limit Pu 224 kN
Reference speed 1200 rpm
Limiting speed 2000 rpm
Weight 30.5 kg
2B 128mm
r3r4 2.5mm
r5 1mm
da max 210mm
da min 257mm
Da max 276mm
Ca min 10mm
ra max 2mm
rc max 1mm
Calculation Factor e 0.44
Calculation Factor Y1 1.5
Calculation Factor Y2 2.3
Calculation Factor Y0 1.6
