SKU: 3204-2RS-EU

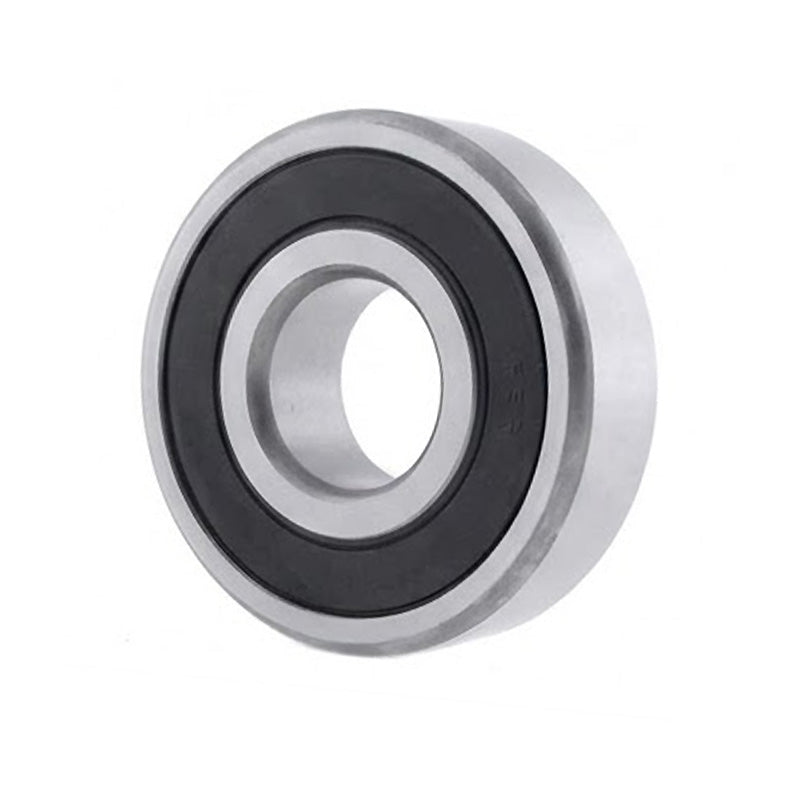

32042RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 20x47x20.6mm
32042RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 20x47x20.6mm
Regular price
$22.59
ex VAT
Regular price
Sale price
$22.59
ex VAT
In stock
Price Break
10+
$15.13
19+
$14.28
29+
$14.11
39+
$13.94
49+
$13.77
74+
$13.60
99+
$12.75
199+
$12.58
249+
$12.41
499+
$12.24
999+
$11.90
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DRACS1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 20.6mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 20.6mm |
| Dynamic load C | 20 kN |
| Static load Co | 12 kN |
| Fatigue load limit Pu | 0.51 kN |
| Reference speed | 10000 rpm |
| Weight | 0.16 kg |
| d1 | 27.7mm |
| D1 | 40.9mm |
| r1r2 min | 1mm |
| a | 28mm |
| da min | 25.6mm |
| da max | 27.5mm |
| Da max | 41.4mm |
| ra max | 1mm |
