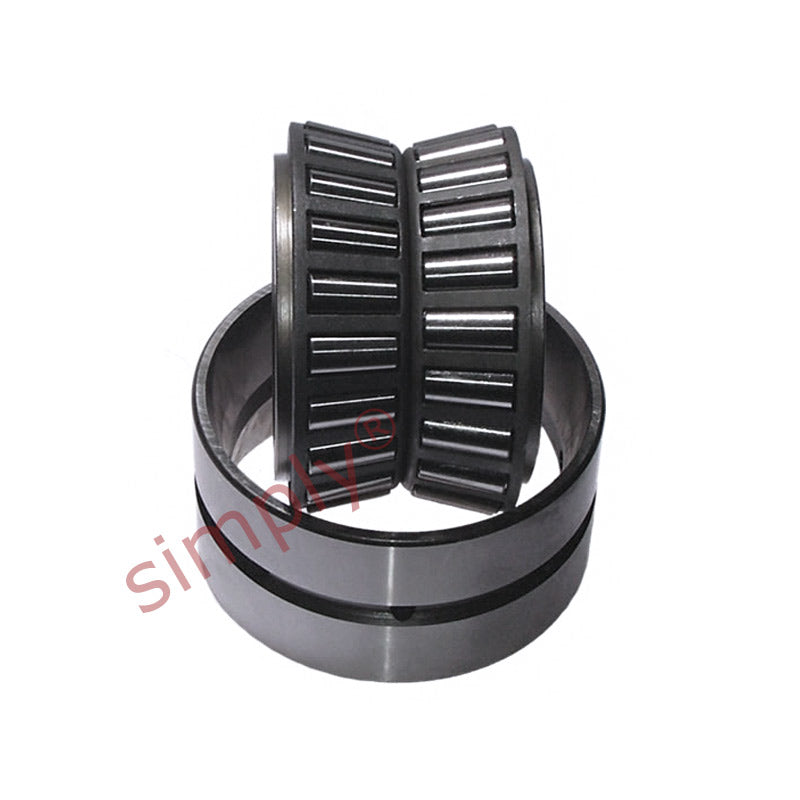

• SKF 32040X/DF Single Row Taper Roller Bearings Paired Face to Face 200x310x140mm
1 1

SKU: 32040X/DF-SKF

SKF 32040X/DF Single Row Taper Roller Bearings Paired Face to Face 200x310x140mm

SKF 32040X/DF Single Row Taper Roller Bearings Paired Face to Face 200x310x140mm
$5,643.09 ex VAT
$5,643.09 ex VAT
Sale Sold out

In stock

Price Break
10+ $3,779.34
19+ $3,567.02
29+ $3,524.56
39+ $3,482.09
49+ $3,439.63
74+ $3,397.16
99+ $3,184.84
199+ $3,142.37
249+ $3,099.91
499+ $3,057.45
999+ $2,972.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery.
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
200mm
Outside Diameter:
310mm
Width:
140mm
Seals / Shields:
None
Technical
d 200mm
D 310mm
T 140mm
Dynamic load 1280 kN
Static load 2750 kN
Fatigue load limit Pu 255 kN
Reference speed 1100 rpm
Limiting speed 1900 rpm
Weight 39 kg
2B 140mm
r3r4 2.5mm
r5 1mm
da max 222mm
da min 273mm
Da max 296mm
Ca min 11mm
ra max 2mm
rc max 1mm
Calculation Factor e 0.43
Calculation Factor Y1 1.6
Calculation Factor Y2 2.3
Calculation Factor Y0 1.6
