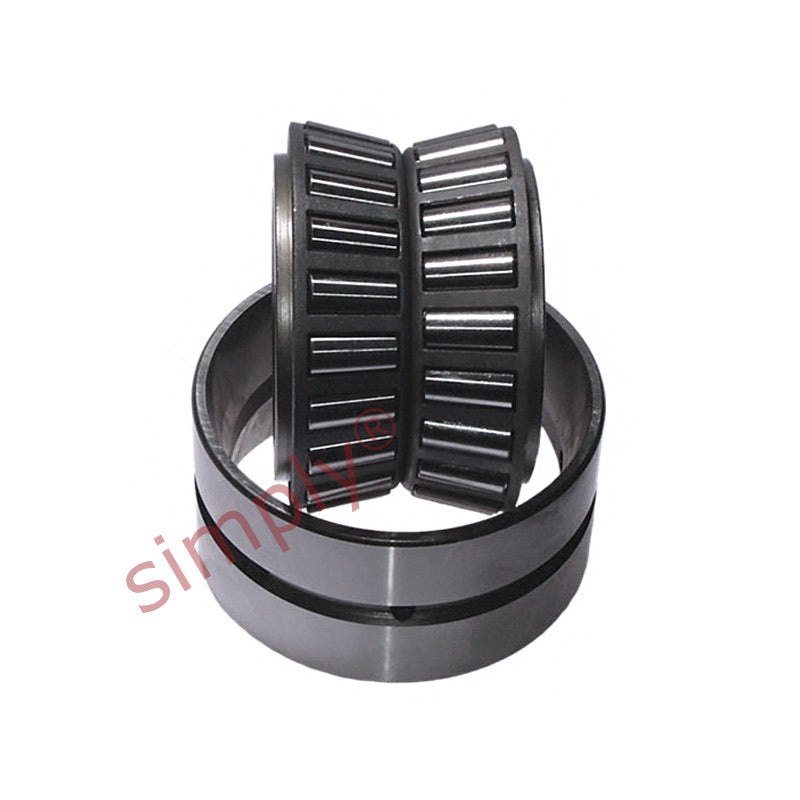

• SKF 32052X/DF Single Row Taper Roller Bearings Paired Face to Face 260x400x174mm
1 1

SKU: 32052X/DF-SKF

SKF 32052X/DF Single Row Taper Roller Bearings Paired Face to Face 260x400x174mm

SKF 32052X/DF Single Row Taper Roller Bearings Paired Face to Face 260x400x174mm
$8,024.77 ex VAT
$8,024.77 ex VAT
Sale Sold out

In stock

Price Break
10+ $5,737.60
19+ $5,616.81
29+ $5,435.62
39+ $5,314.83
49+ $5,194.04
74+ $5,073.25
99+ $4,952.46
199+ $4,831.67
249+ $4,650.48
499+ $4,529.69
999+ $4,408.90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery.
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
260mm
Outside Diameter:
400mm
Width:
174mm
Seals / Shields:
None
Technical
d 260mm
D 400mm
T 174mm
Dynamic load 1980 kN
Static load 4400 kN
Fatigue load limit Pu 380 kN
Reference speed 850 rpm
Limiting speed 1400 rpm
Weight 79.5 kg
2B 174mm
r3r4 4mm
r5 1.5mm
da max 287mm
da min 352mm
Da max 383mm
Ca min 13mm
ra max 3mm
rc max 1.5mm
Calculation Factor e 0.43
Calculation Factor Y1 1.6
Calculation Factor Y2 2.3
Calculation Factor Y0 1.6
