SKU: 32056X/DF-SKF

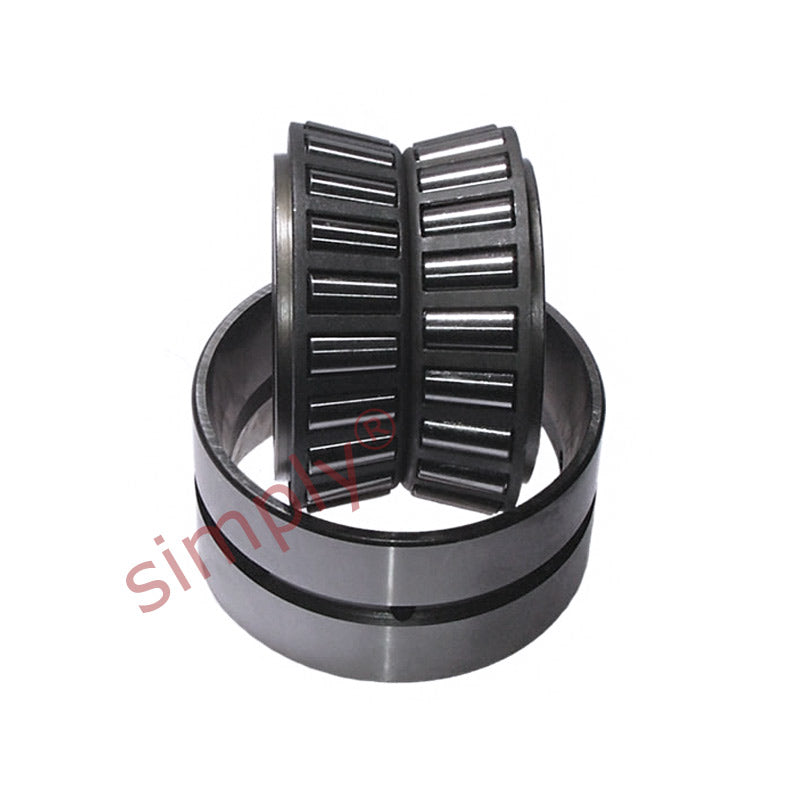

SKF 32056X/DF Single Row Taper Roller Bearings Paired Face to Face 280x420x174mm

Name: SKF 32056X/DF Single Row Taper Roller Bearings Paired Face to Face 280x420x174mm
Brand: SKF
SKU: 32056X/DF-SKF
Price: 9514.16 USD
Availability: InStock

$9,514.16 ex VAT

Sale Sold out

In stock

Price Break

10+ $6,802.50

19+ $6,659.29

29+ $6,444.47

39+ $6,301.26

49+ $6,158.05

74+ $6,014.84

99+ $5,871.63

199+ $5,728.42

249+ $5,513.60

499+ $5,370.39

999+ $5,227.18

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery.
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 280mm
Outside Diameter:: 420mm
Width:: 174mm
Seals / Shields:: None

Technical

d	280mm
D	420mm
T	174mm
Dynamic load	2050 kN
Static load	4750 kN
Fatigue load limit Pu	400 kN
Reference speed	800 rpm
Limiting speed	1300 rpm
Weight	84.5 kg
2B	174mm
r3r4	4mm
r5	1.5mm
da max	305mm
da min	370mm
Da max	400mm
Ca min	14mm
ra max	3mm
rc max	1.5mm
Calculation Factor e	0.46
Calculation Factor Y1	1.5
Calculation Factor Y2	2.2
Calculation Factor Y0	1.4
