SKU: 3207-2Z-EU

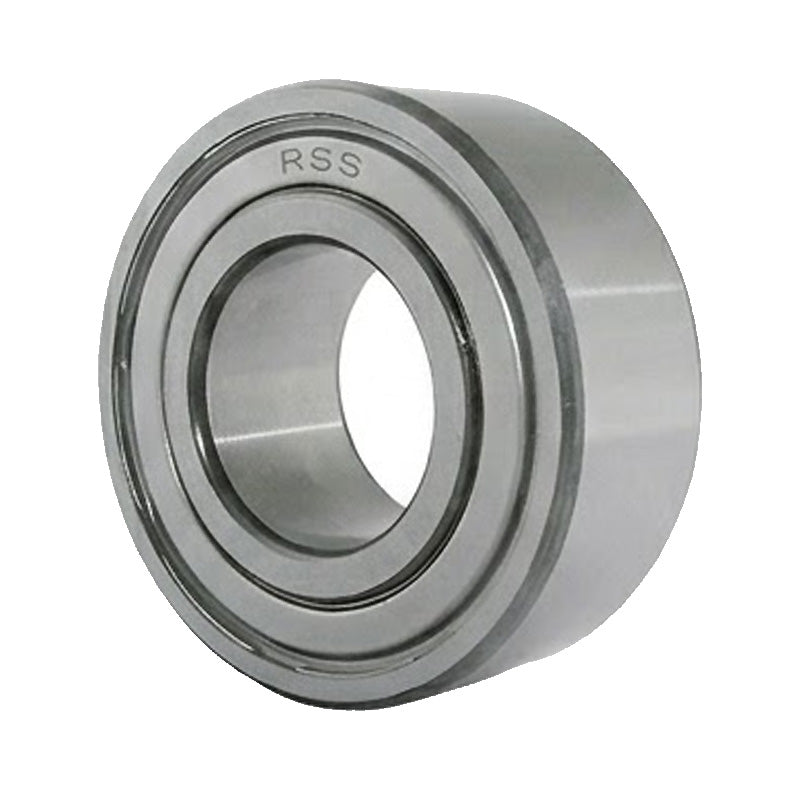

32072Z Budget Shielded Double Row Angular Contact Ball Bearing 35x72x27mm
32072Z Budget Shielded Double Row Angular Contact Ball Bearing 35x72x27mm
Regular price
$33.63
ex VAT
Regular price
Sale price
$33.63
ex VAT
In stock
Price Break
10+
$22.53
19+
$21.26
29+
$21.01
39+
$20.76
49+
$20.50
74+
$20.25
99+
$18.99
199+
$18.73
249+
$18.48
499+
$18.23
999+
$17.72
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 27mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 27mm |
| Dynamic load C | 40 kN |
| Static load Co | 28 kN |
| Fatigue load limit Pu | 1.18 kN |
| Reference speed | 9000 rpm |
| Weight | 0.44 kg |
| d1 | 45.4mm |
| D1 | 63.9mm |
| r1r2 min | 1.1mm |
| a | 42mm |
| da min | 42mm |
| da max | 45mm |
| Da max | 65mm |
| ra max | 1mm |
