SKU: 3207-EU

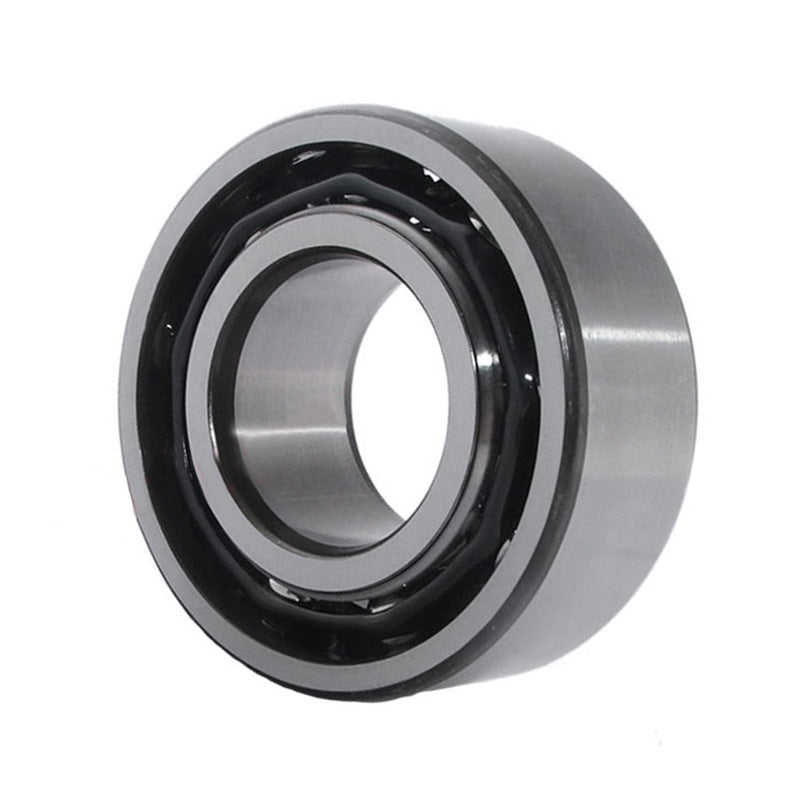

3207 Budget Double Row Angular Contact Ball Bearing 35x72x27mm
3207 Budget Double Row Angular Contact Ball Bearing 35x72x27mm
Regular price
$29.30
ex VAT
Regular price
Sale price
$29.30
ex VAT
In stock
Price Break
10+
$19.63
19+
$18.52
29+
$18.30
39+
$18.08
49+
$17.86
74+
$17.64
99+
$16.54
199+
$16.32
249+
$16.10
499+
$15.88
999+
$15.44
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DRAC1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 27mm |
| Dynamic load C | 40 kN |
| Static load Co | 28 kN |
| Fatigue load limit Pu | 1.18 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.44 kg |
| d1 | 45.4mm |
| D1 | 63.9mm |
| r1r2 min | 1.1mm |
| a | 42mm |
| da min | 42mm |
| Da max | 65mm |
| ra max | 1mm |
