SKU: 3207A-2ZTN9/MT33-SKF

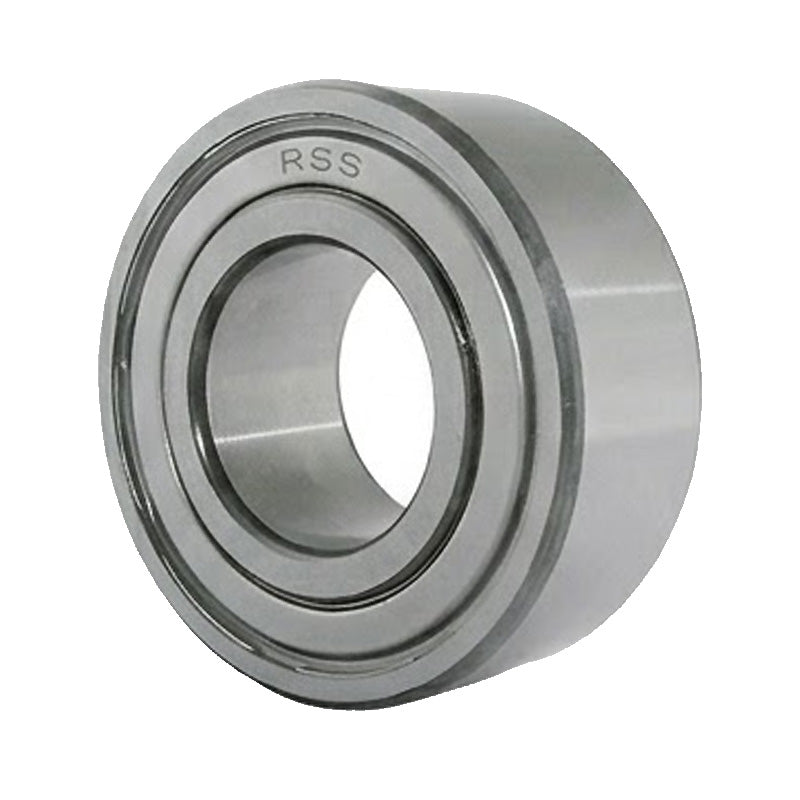

SKF 3207A2ZTN9MT33 Double Row Angular Contact Ball Bearing with 2 Metal Shields 35x72x27mm

Name: SKF 3207A2ZTN9MT33 Double Row Angular Contact Ball Bearing with 2 Metal Shields 35x72x27mm
Brand: SKF
SKU: 3207A-2ZTN9/MT33-SKF
Price: 86.25 USD
Availability: InStock

$86.25 ex VAT

Sale Sold out

Equivalent to: 5207

In stock

Price Break

4+ $57.77

8+ $54.52

12+ $53.87

16+ $53.22

25+ $52.58

50+ $51.93

99+ $48.68

199+ $48.03

249+ $47.38

499+ $46.73

999+ $45.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Metal Shielded Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

Brand / Quality:: SKF - High Quality
Inside Diameter:: 35mm
Outside Diameter:: 72mm
Width:: 27mm
Seals / Shields:: Metal Shielded
Clearance:: * Standard

Technical

d	35mm
D	72mm
B	27mm
Dynamic load Cr	40 kN
Static load Cor	28 kN
Fatigue load limit Pu	1.18 kN
Max speed	9000 rpm
Weight	0.44 kg
d1	45.4mm
D1	63.9mm
r1r2 min	1.1mm
a	42mm
da min	42mm
da max	45mm
Da max	65mm
ra max	1mm
