SKU: 3209-2RS-EU

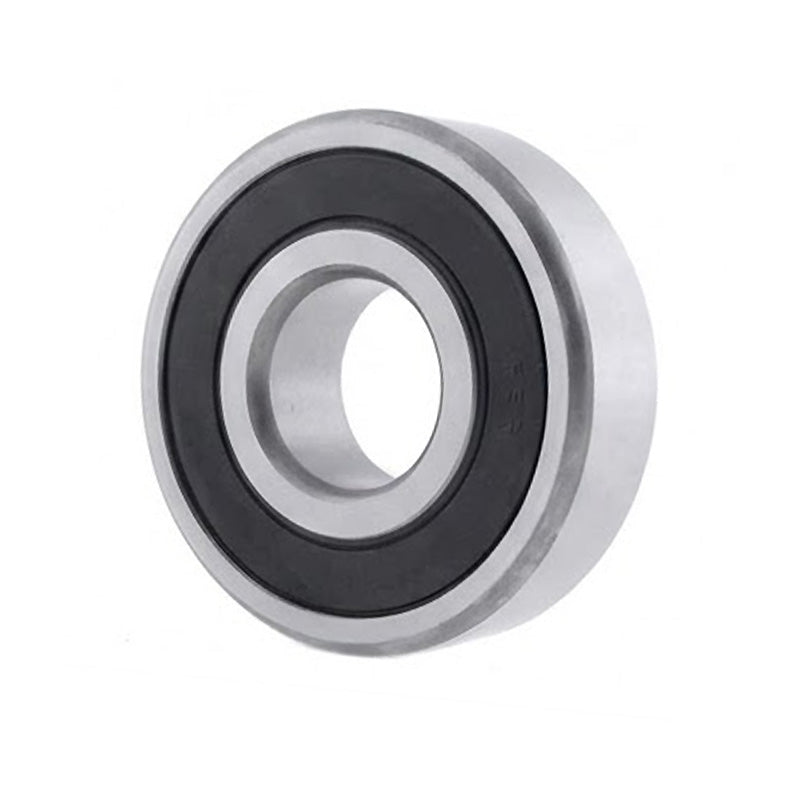

32092RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 45x85x30.2mm
32092RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 45x85x30.2mm
Regular price
$51.66
ex VAT
Regular price
Sale price
$51.66
ex VAT
In stock
Price Break
10+
$34.60
19+
$32.66
29+
$32.27
39+
$31.88
49+
$31.49
74+
$31.10
99+
$29.16
199+
$28.77
249+
$28.38
499+
$27.99
999+
$27.22
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DRACS1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 30.2mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 30.2mm |
| Dynamic load C | 51 kN |
| Static load Co | 39 kN |
| Fatigue load limit Pu | 1.63 kN |
| Reference speed | 5300 rpm |
| Weight | 0.63 kg |
| d1 | 52.8mm |
| D1 | 77.1mm |
| r1r2 min | 1.1mm |
| a | 49mm |
| da min | 52mm |
| da max | 52.5mm |
| Da max | 78mm |
| ra max | 1mm |
