• SKF 3210A2RS1TN9C3MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 50x90x30.2mm
1 1

SKU: 3210A-2RS1TN9/C3MT33-SKF

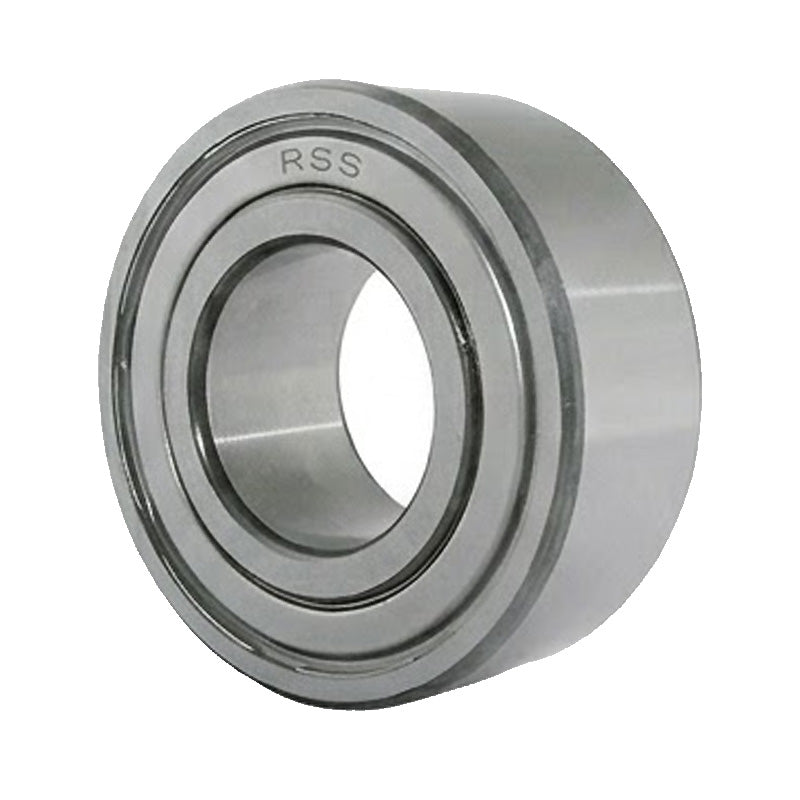

SKF 3210A2RS1TN9C3MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 50x90x30.2mm

SKF 3210A2RS1TN9C3MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 50x90x30.2mm
$137.39 ex VAT
$137.39 ex VAT
Sale Sold out

Equivalent to: 5210

In stock

Price Break
4+ $92.02
8+ $86.85
12+ $85.82
16+ $84.79
25+ $83.75
50+ $82.72
99+ $77.55
199+ $76.51
249+ $75.48
499+ $74.45
999+ $72.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Brand / Quality:
SKF - High Quality
Inside Diameter:
50mm
Outside Diameter:
90mm
Width:
30.2mm
Seals / Shields:
None
Clearance:
C3
Technical
d 50mm
D 90mm
B 30.2mm
Dynamic load Cr 51 kN
Static load Cor 39 kN
Fatigue load limit Pu 1.66 kN
Max speed 4800 rpm
Weight 0.65 kg
d1 57.8mm
D1 82.1mm
r1r2 min 1.1mm
a 52mm
da min 57mm
da max 57.5mm
Da max 83mm
ra max 1mm
