SKU: 3211-2Z-EU

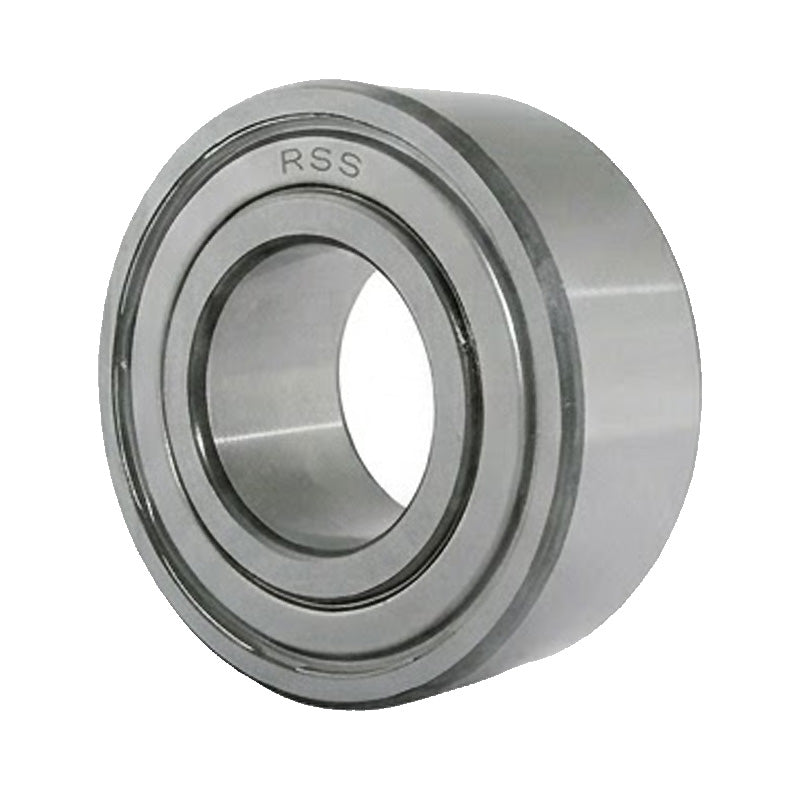

32112Z Budget Shielded Double Row Angular Contact Ball Bearing 55x100x33.3mm
32112Z Budget Shielded Double Row Angular Contact Ball Bearing 55x100x33.3mm
Regular price
$72.23
ex VAT
Regular price
Sale price
$72.23
ex VAT
In stock
Price Break
10+
$48.38
19+
$45.66
29+
$45.12
39+
$44.57
49+
$44.03
74+
$43.49
99+
$40.77
199+
$40.22
249+
$39.68
499+
$39.14
999+
$38.05
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 33.3mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 33.3mm |
| Dynamic load C | 60 kN |
| Static load Co | 47.5 kN |
| Fatigue load limit Pu | 2 kN |
| Reference speed | 6300 rpm |
| Weight | 0.91 kg |
| d1 | 63.2mm |
| D1 | 92.3mm |
| r1r2 min | 1.5mm |
| a | 57mm |
| da min | 63mm |
| da max | 63mm |
| Da max | 91mm |
| ra max | 1.5mm |
