SKU: 3211-EU

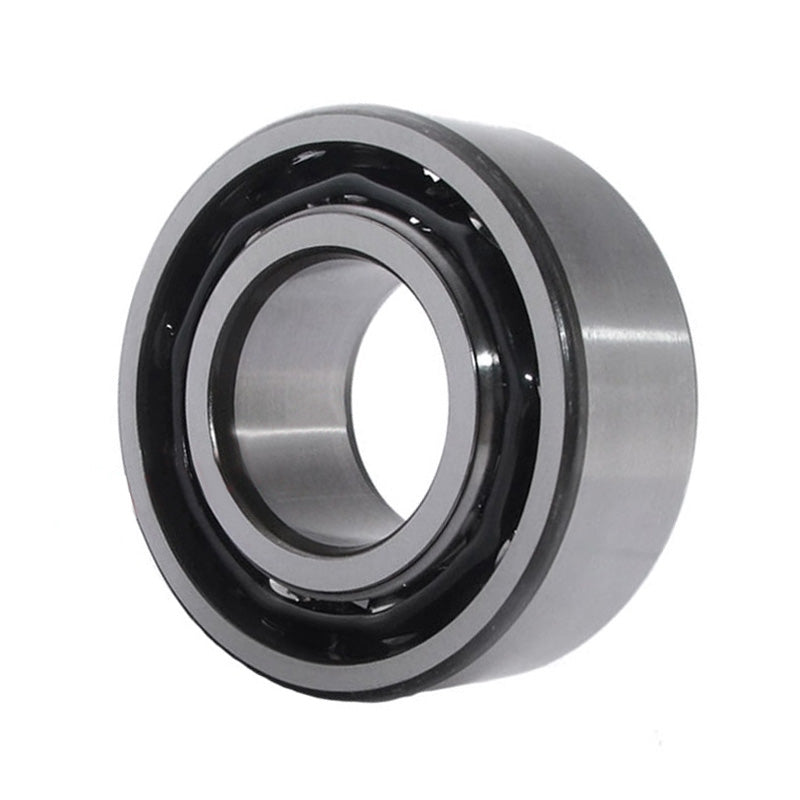

3211 Budget Double Row Angular Contact Ball Bearing 55x100x33.3mm
3211 Budget Double Row Angular Contact Ball Bearing 55x100x33.3mm
Regular price
$57.11
ex VAT
Regular price
Sale price
$57.11
ex VAT
In stock
Price Break
10+
$38.25
19+
$36.10
29+
$35.67
39+
$35.24
49+
$34.81
74+
$34.38
99+
$32.23
199+
$31.80
249+
$31.37
499+
$30.95
999+
$30.09
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DRAC1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 33.3mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 33.3mm |
| Dynamic load C | 60 kN |
| Static load Co | 47.5 kN |
| Fatigue load limit Pu | 2 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 6300 rpm |
| Weight | 1.05 kg |
| d1 | 63.2mm |
| D1 | 92.3mm |
| r1r2 min | 1.5mm |
| a | 57mm |
| da min | 63mm |
| Da max | 91mm |
| ra max | 1.5mm |
