SKU: 3211A-2RS1/MT33-SKF

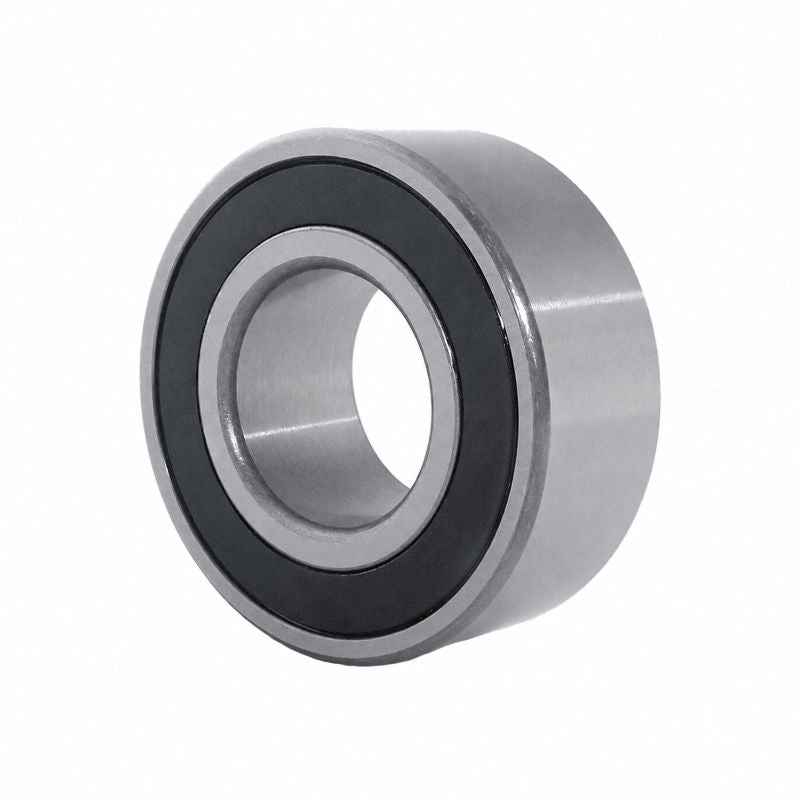

SKF 3211A2RS1MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 55x100x33.3mm

Name: SKF 3211A2RS1MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 55x100x33.3mm
Brand: SKF
SKU: 3211A-2RS1/MT33-SKF
Price: 181.83 USD
Availability: InStock

$181.83 ex VAT

Sale Sold out

Equivalent to: 5211

In stock

Price Break

4+ $121.80

8+ $114.95

12+ $113.58

16+ $112.22

25+ $110.85

50+ $109.48

99+ $102.64

199+ $101.27

249+ $99.90

499+ $98.53

999+ $95.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

Brand / Quality:: SKF - High Quality
Inside Diameter:: 55mm
Outside Diameter:: 100mm
Width:: 33.3mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	55mm
D	100mm
B	33.3mm
Dynamic load Cr	60 kN
Static load Cor	47.5 kN
Fatigue load limit Pu	2 kN
Max speed	4500 rpm
Weight	0.91 kg
d1	63.2mm
D1	92.3mm
r1r2 min	1.5mm
a	57mm
da min	63mm
da max	63mm
Da max	91mm
ra max	1.5mm
