SKU: 3212-2RS-EU

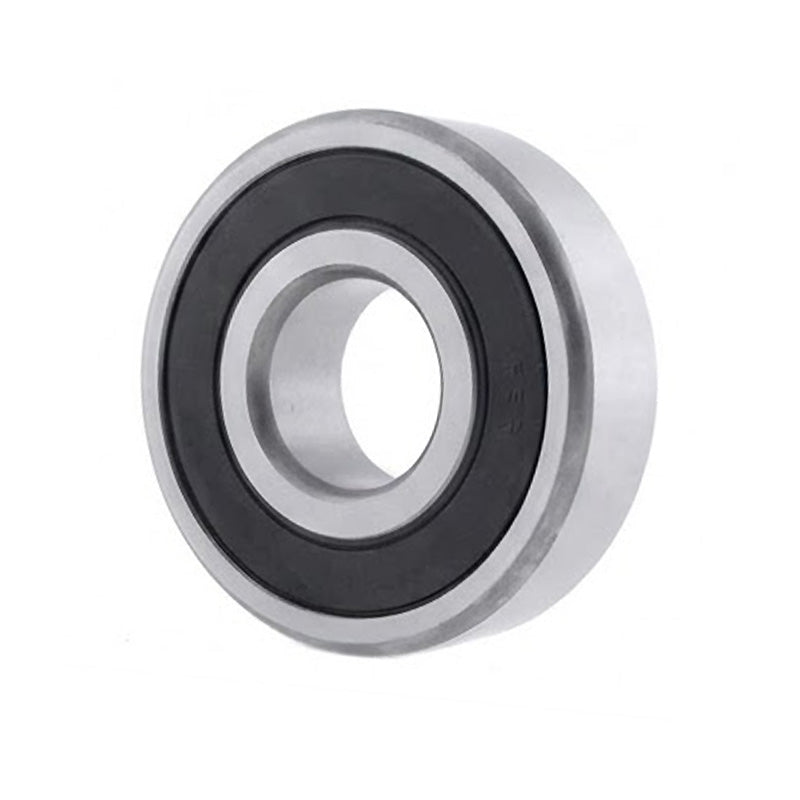

32122RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 60x110x36.5mm
32122RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 60x110x36.5mm
Regular price
$30.60
ex VAT
Regular price
Sale price
$30.60
ex VAT
In stock
Price Break
10+
$20.49
19+
$19.34
29+
$19.11
39+
$18.88
49+
$18.65
74+
$18.42
99+
$17.27
199+
$17.04
249+
$16.81
499+
$16.58
999+
$16.12
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DRACS1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 36.5mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 36.5mm |
| Dynamic load C | 73.5 kN |
| Static load Co | 58.5 kN |
| Fatigue load limit Pu | 2.5 kN |
| Reference speed | 4000 rpm |
| Weight | 1.2 kg |
| d1 | 68.8mm |
| D1 | 101mm |
| r1r2 min | 1.5mm |
| a | 63mm |
| da min | 68.5mm |
| da max | 68.5mm |
| Da max | 101mm |
| ra max | 1.5mm |
