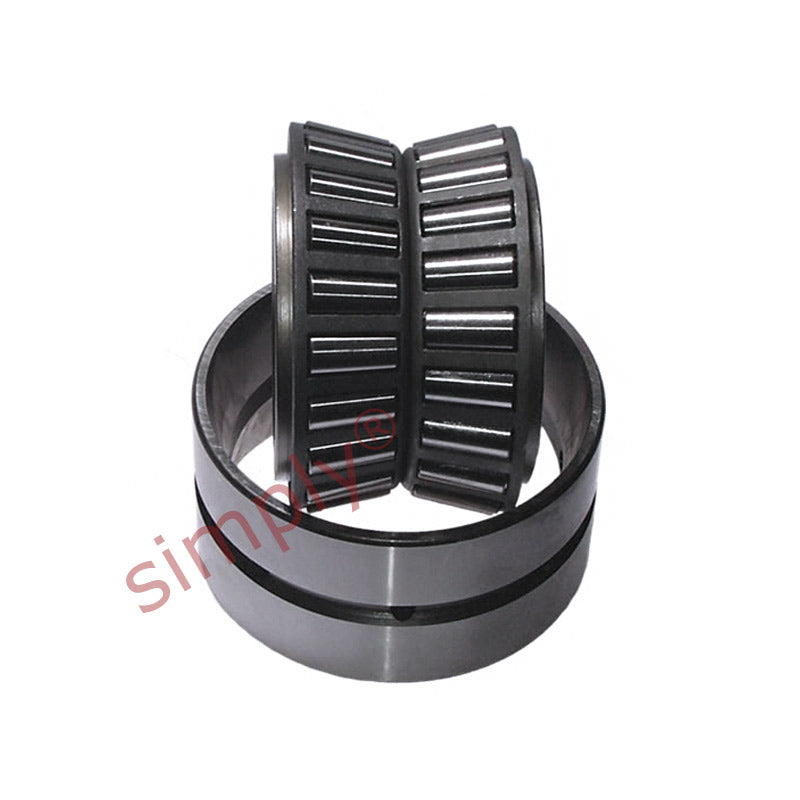

• SKF 32215J2/QDF Single Row Taper Roller Bearings Paired Face to Face 75x130x66.5mm
1 1

SKU: 32215J2/QDF-SKF

SKF 32215J2/QDF Single Row Taper Roller Bearings Paired Face to Face 75x130x66.5mm

SKF 32215J2/QDF Single Row Taper Roller Bearings Paired Face to Face 75x130x66.5mm
$602.47 ex VAT
$602.47 ex VAT
Sale Sold out

In stock

Price Break
10+ $403.55
19+ $380.88
29+ $376.35
39+ $371.81
49+ $367.28
74+ $362.75
99+ $340.07
199+ $335.54
249+ $331.01
499+ $326.47
999+ $317.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery.
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
75mm
Outside Diameter:
130mm
Width:
66.5mm
Seals / Shields:
None
Technical
d 75mm
D 130mm
T 66.5mm
Dynamic load 275 kN
Static load 425 kN
Fatigue load limit Pu 49 kN
Reference speed 3000 rpm
Limiting speed 5000 rpm
Weight 3.4 kg
2B 62mm
r3r4 1.5mm
r5 0.6mm
da max 85mm
da min 114mm
Da max 122mm
Ca min 4mm
ra max 1.5mm
rc max 0.6mm
Calculation Factor e 0.43
Calculation Factor Y1 1.6
Calculation Factor Y2 2.3
Calculation Factor Y0 1.6
