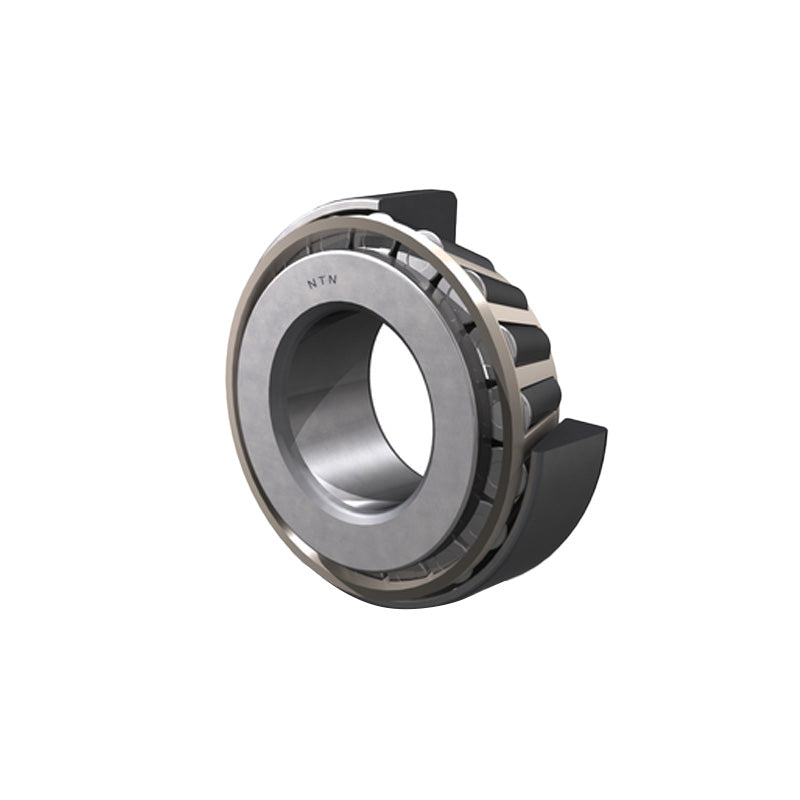

• NTN 32224U Tapered Roller Bearing Cup and Cone Set 120x215x61.5mm
  • NTN
1 2

SKU: 32224U-NTN

NTN 32224U Tapered Roller Bearing Cup and Cone Set 120x215x61.5mm

NTN 32224U Tapered Roller Bearing Cup and Cone Set 120x215x61.5mm
$645.73 ex VAT
$645.73 ex VAT
Sale Sold out

In stock

Price Break
3+ $432.53
5+ $408.23
10+ $403.37
25+ $398.51
49+ $393.65
74+ $388.79
99+ $364.49
199+ $359.63
249+ $354.77
499+ $349.91
999+ $340.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
120mm
Outside Diameter:
215mm
Width:
61.5mm
Style:
Taper Roller Bearing
Technical
--- Bearing dimensions
d 120mm
D 215mm
T 61.5mm
B 58mm
C 50mm
r<sub>s</sub> min 3mm
r<sub>ls</sub> min 2.5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 510kN
Static load C<sub>or</sub> 680kN
Fatigue Load limit C<sub>u</sub> 71.5kN
Allowable Speed in grease 1700rpm
Allowable Speed in oil 2200rpm
--- Abutment dimensions
ISO Dimension series 4FD
d<sub>a</sub> min 134mm
d<sub>b</sub> max 135.5mm
D<sub>a</sub> max 203mm
D<sub>a</sub> min 178mm
D<sub>b</sub> min 206mm
S<sub>a</sub> min 6mm
S<sub>b</sub> min 11.5mm
r<sub>as</sub> max 2.5mm
r<sub>1as</sub> max 2mm
Load center a 51.5mm
Constant e 0.44mm
Y<sub>2</sub> 1.38mm
Y<sub>0</sub> 0.76mm
Weight 9.08kg
