SKU: 32309CU-NTN

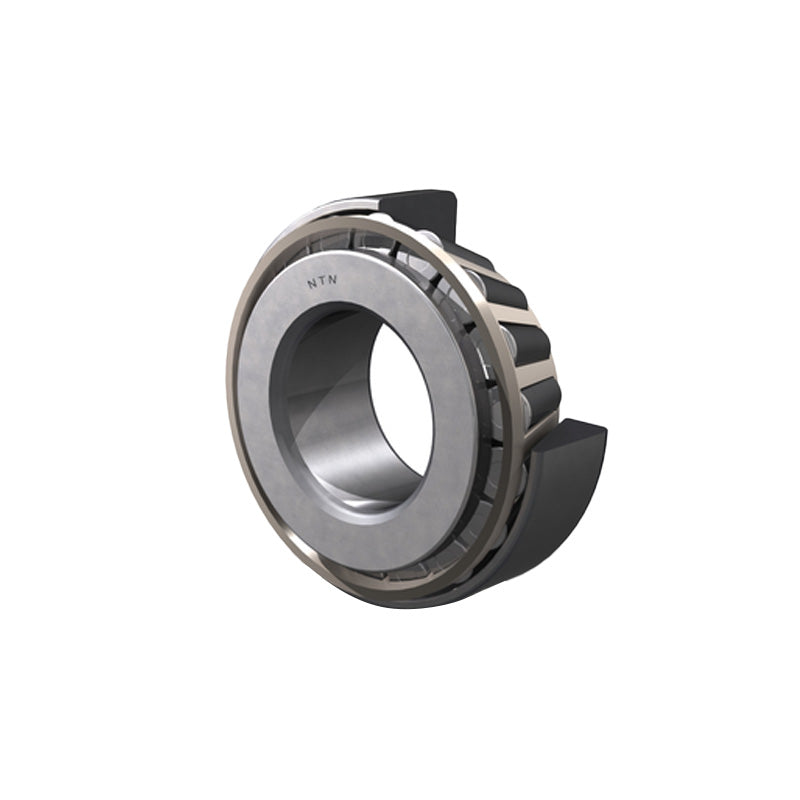

NTN 32309CU Tapered Roller Bearing Cup and Cone Set 45x100x38.25mm

NTN 32309CU Tapered Roller Bearing Cup and Cone Set 45x100x38.25mm
Regular price $74.05 ex VAT
Regular price Sale price $74.05 ex VAT
Sale Sold out

In stock

Price Break
3+ $49.60
5+ $46.81
10+ $46.26
25+ $45.70
49+ $45.14
74+ $44.58
99+ $41.80
199+ $41.24
249+ $40.68
499+ $40.13
999+ $39.01
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 45mm
D 100mm
T 38.25mm
B 36mm
C 30mm
r<sub>s</sub> min 2.5mm
r<sub>ls</sub> min 0.6mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 145kN
Static load C<sub>or</sub> 175kN
Fatigue Load limit C<sub>u</sub> 21.4kN
Allowable Speed in grease 3800rpm
Allowable Speed in oil 5100rpm
--- Abutment dimensions
ISO Dimension series 5FD
d<sub>a</sub> min 55mm
d<sub>b</sub> max 55.5mm
D<sub>a</sub> max 91.5mm
D<sub>a</sub> min 73.5mm
D<sub>b</sub> min 95mm
S<sub>a</sub> min 4mm
S<sub>b</sub> min 9mm
r<sub>as</sub> max 2.5mm
r<sub>1as</sub> max 0.6mm
Load center a 30mm
Constant e 0.55mm
Y<sub>2</sub> 1.1mm
Y<sub>0</sub> 0.6mm
Weight 1.47kg
