SKU: 32310AK-NILOS
32310AK Nilos Ring for 32310 Series Bearings 50x113x4.5mm
- Regular price
- $46.90 ex VAT
- Sale price
- $46.90
- Regular price
-
In stock
Quantity Price Breaks
10
$41.74
19
$39.40
29
$38.93
39
$38.46
49
$37.99
74
$37.52
99
$35.18
199
$34.71
249
$34.24
499
$33.77
999
$32.83
SKU:
32310AK-NILOS
32310AK Nilos Ring for 32310 Series Bearings 50x113x4.5mm
- Regular price
- $46.90 ex VAT
- Sale price
- $46.90
- Regular price
-
Description
Nilos AK Sealing Rings: A Nilos ring that seals the outer ring of a tapered roller bearing. The unique two-disk design enables double-sealing of the bearing's outer ring.
Nilos rings are required in particular installations where excess dirt or debris may be present that could penetrate the bearing, if some further mechanical protection is required or if condensation is formed.

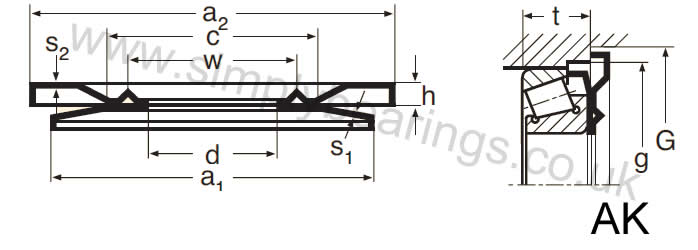

Technical
| Fits Bearing | = | 32310 |
| Bearing id | = | 50mm |
| Bearing od | = | 110mm |
| Bearing width | = | 33mm |
| a1 | = | 106.5mm |
| a2 | = | 113mm |
| c | = | 85mm |
| d | = | 50mm |
| w | = | 63mm |
| h | = | 4.5mm |
| s1 | = | 0.5mm |
| s2 | = | 0.5mm |
| G | = | 114mm |
| g | = | 111mm |
| t | = | 43mm |
