SKU: 32316CU-NTN

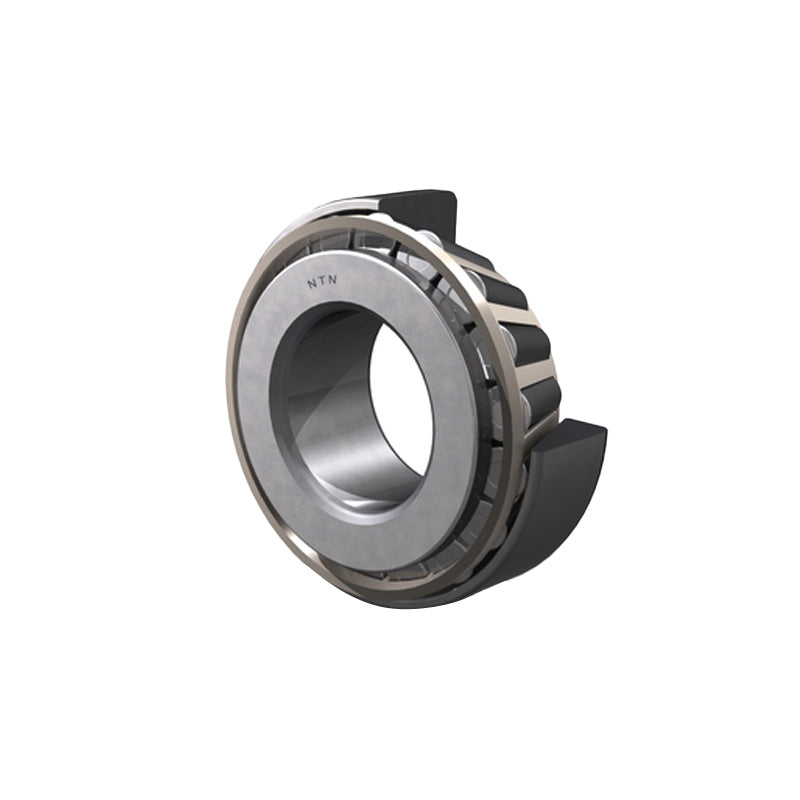

NTN 32316CU Tapered Roller Bearing Cup and Cone Set 80x170x61.5mm

NTN 32316CU Tapered Roller Bearing Cup and Cone Set 80x170x61.5mm
$410.41 ex VAT
$410.41 ex VAT
Sale Sold out

In stock

Price Break
3+ $274.90
5+ $259.46
10+ $256.37
25+ $253.28
49+ $250.19
74+ $247.10
99+ $231.66
199+ $228.57
249+ $225.48
499+ $222.39
999+ $216.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
80mm
Outside Diameter:
170mm
Width:
61.5mm
Style:
Taper Roller Bearing
Technical
--- Bearing dimensions
d 80mm
D 170mm
T 61.5mm
B 58mm
C 48mm
r<sub>s</sub> min 3mm
r<sub>ls</sub> min 2.5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 390kN
Static load C<sub>or</sub> 505kN
Fatigue Load limit C<sub>u</sub> 58kN
Allowable Speed in grease 2200rpm
Allowable Speed in oil 2900rpm
--- Abutment dimensions
ISO Dimension series 5GD
d<sub>a</sub> min 94mm
d<sub>b</sub> max 96mm
D<sub>a</sub> max 158mm
D<sub>a</sub> min 127.5mm
D<sub>b</sub> min 162mm
S<sub>a</sub> min 4mm
S<sub>b</sub> min 13.5mm
r<sub>as</sub> max 2.5mm
r<sub>1as</sub> max 2mm
Load center a 50.5mm
Constant e 0.55mm
Y<sub>2</sub> 1.1mm
Y<sub>0</sub> 0.6mm
Weight 6.61kg
