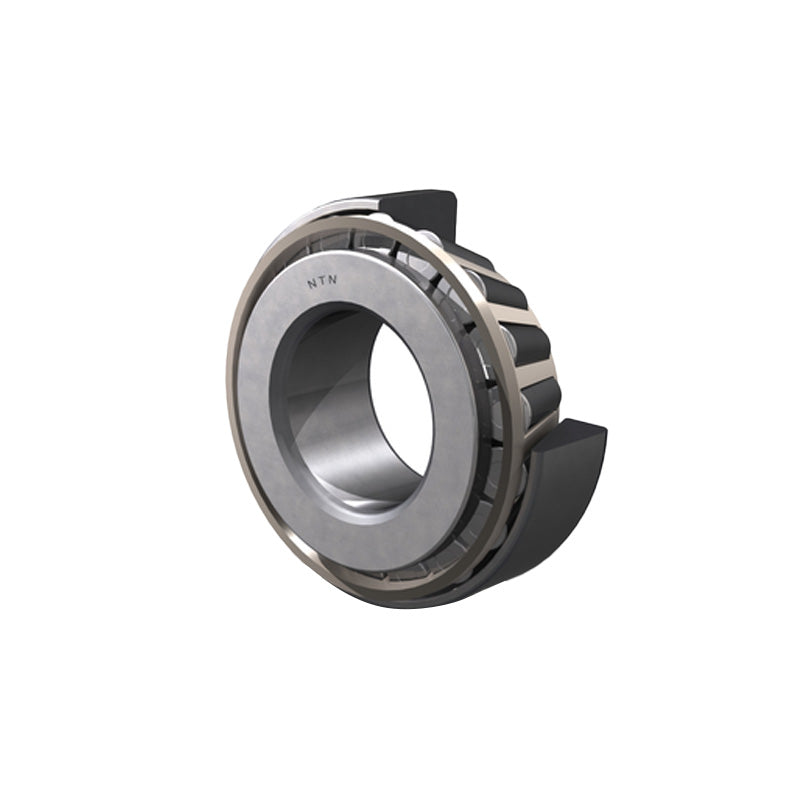

NTN 32338UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 190x400x140mm

NTN 32338UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 190x400x140mm

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 190mm
D 400mm
T 140mm
B 132mm
C 109mm
r<sub>s</sub> min 5mm
r<sub>ls</sub> min 5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 2040kN
Static load C<sub>or</sub> 2390kN
Fatigue Load limit C<sub>u</sub> 211kN
Allowable Speed in grease 900rpm
Allowable Speed in oil 1300rpm
--- Abutment dimensions
d<sub>a</sub> min 212mm
d<sub>b</sub> max 233mm
D<sub>a</sub> max 378mm
D<sub>a</sub> min 320mm
D<sub>b</sub> min 373.5mm
S<sub>a</sub> min 1.5mm
S<sub>b</sub> min 31mm
r<sub>as</sub> max 4mm
r<sub>1as</sub> max 4mm
Load center a 100mm
Constant e 0.37mm
Y<sub>2</sub> 1.6mm
Y<sub>0</sub> 0.88mm
Weight 77kg
