SKU: 32B-2-SD-NO11-RENOLD
Renold SD 32B-2-NO11 BS Duplex Chain Cottered Connecting Link 2 inch Pitch
- Regular price
- $63.75 ex VAT
- Sale price
- $63.75
- Regular price
-
Not in stock
Quantity Price Breaks
2
$56.74
5
$53.55
10
$52.91
29
$52.28
49
$51.64
75
$51.00
100
$47.81
200
$47.18
250
$46.54
500
$45.90
1000
$44.63
SKU:
32B-2-SD-NO11-RENOLD
Renold SD 32B-2-NO11 BS Duplex Chain Cottered Connecting Link 2 inch Pitch
- Regular price
- $63.75 ex VAT
- Sale price
- $63.75
- Regular price
-
Description

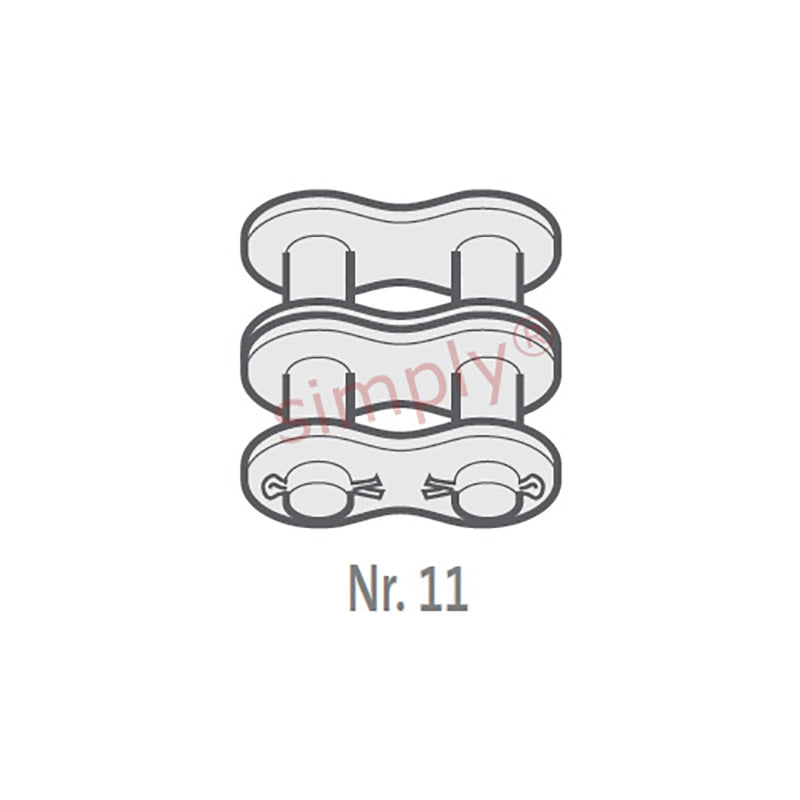

| Renold No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 2 inch |
| Pitch (A) | = | 50.8mm |
| Inside Width min (B) | = | 30.99mm |
| Roller Diameter max (C) | = | 29.21mm |
| Plate Height max (D) | = | 42.1mm |
| Plate Width Inner max (E) | = | 7.1mm |
| Plate Width Outer max (F) | = | 6.4mm |
| Pin Diameter max (G) | = | 17.81mm |
| Pin Length max (H2) | = | 124.6mm |
| Connecting Link Extension max (J) | = | 5mm |
| Transverse Pitch nom (K) | = | 58.55mm |
| ISO606 Tensile Strength min | = | 450000 N |
| Weight | = | 0.34kg/m |
