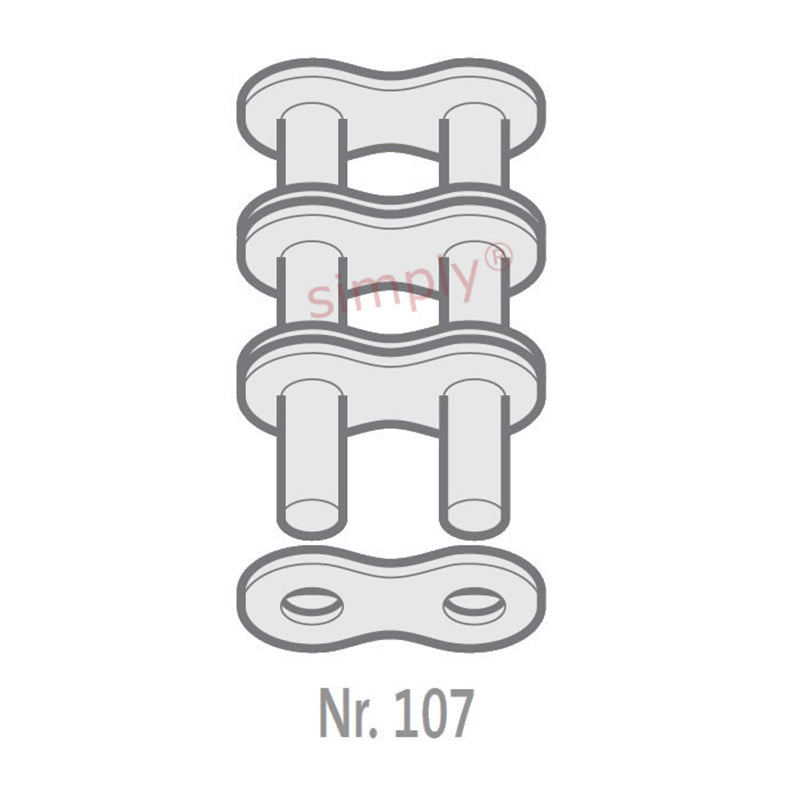

• Renold Blue Box 32B-3-NO107 BS Triplex Chain Outer Link To Be Riveted 2 inch Pitch
  • Renold
1 2

SKU: 32B-3-BB-NO107-RENOLD

Renold Blue Box 32B-3-NO107 BS Triplex Chain Outer Link To Be Riveted 2 inch Pitch

Renold Blue Box 32B-3-NO107 BS Triplex Chain Outer Link To Be Riveted 2 inch Pitch
$249.34 ex VAT
$249.34 ex VAT
Sale Sold out

In stock

Price Break
2+ $167.02
5+ $157.63
10+ $155.76
29+ $153.88
49+ $152.00
75+ $150.13
100+ $140.74
200+ $138.87
250+ $136.99
500+ $135.11
1000+ $131.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
50.8mm = 2 inch
Technical
Pitch (A) 2 inch
Pitch (A) 50.8mm
Inside Width min (B) 30.99mm
Roller Diameter max (C) 29.21mm
Plate Height max (D) 42.29mm
Plate Width Inner max (E) 7.11mm
Plate Width Outer max (F) 6.35mm
Pin Diameter max (G) 17.81mm
Pin Length max (H2) 180.5mm
Connecting Link Extension max (J) 8mm
Transverse Pitch nom (K) 58.55mm
ISO606 Tensile Strength min 670000 N
Weight 0.34kg/m
