• Branded 32B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 2 inch Pitch
1 1

SKU: 32B-3-NO12-MB

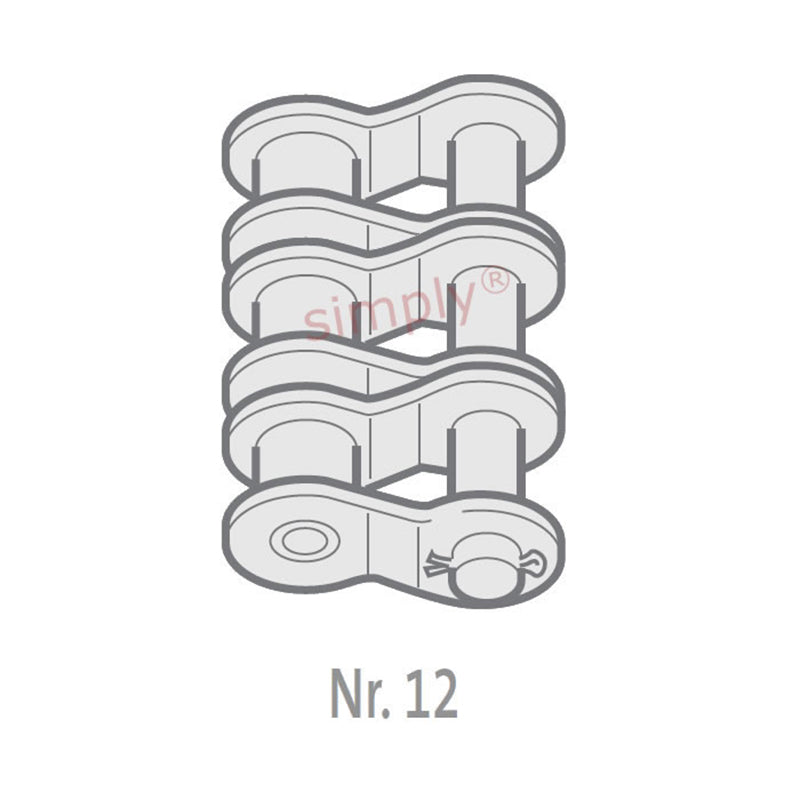

Branded 32B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 2 inch Pitch

Branded 32B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 2 inch Pitch
$103.61 ex VAT
$103.61 ex VAT
Sale Sold out

Equivalent to: 32B-3-OL

In stock

Price Break
2+ $69.40
5+ $65.50
10+ $64.72
29+ $63.94
49+ $63.16
75+ $62.38
100+ $58.48
200+ $57.70
250+ $56.92
500+ $56.14
1000+ $54.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
50.8mm = 2 inch
Technical
Pitch (A) 2 inch
Pitch (A) 50.8mm
Inside Width min (B) 30.99mm
Roller Diameter max (C) 29.21mm
Plate Height max (D) 42.1mm
Plate Width Inner max (E) 7.1mm
Plate Width Outer max (F) 6.4mm
Pin Diameter max (G) 17.81mm
Pin Length max (H3) 179.4mm
Connecting Link Extension max (J) 14.4mm
ISO606 Tensile Strength min 725000 N
Weight 0.5kg/m
