SKU: 3304-2RS-EU

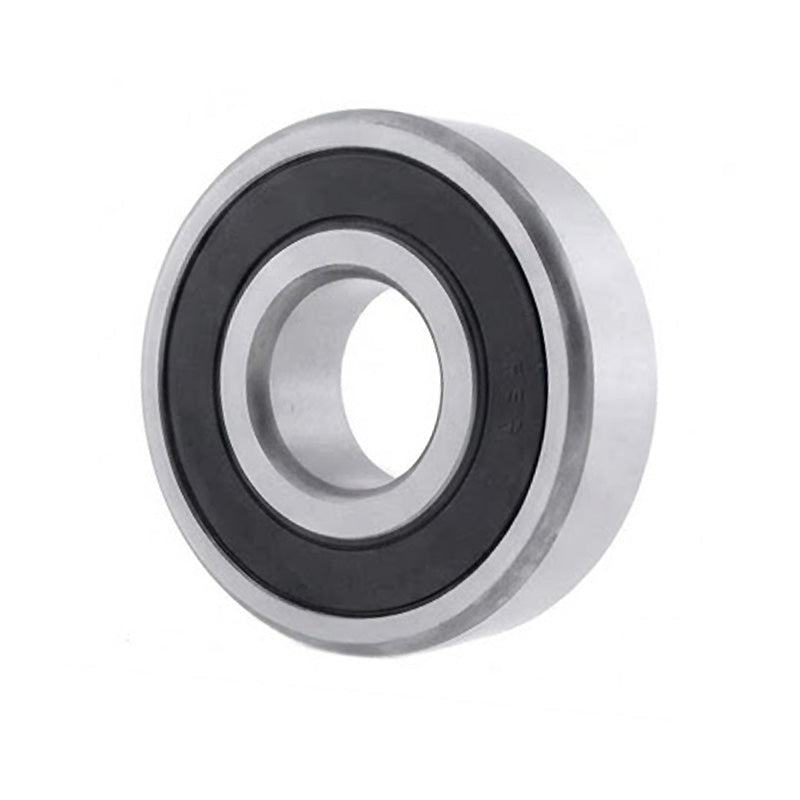

33042RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 20x52x22.2mm
33042RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 20x52x22.2mm
Regular price
$31.86
ex VAT
Regular price
Sale price
$31.86
ex VAT
In stock
Price Break
10+
$21.34
19+
$20.14
29+
$19.90
39+
$19.66
49+
$19.42
74+
$19.18
99+
$17.98
199+
$17.74
249+
$17.50
499+
$17.26
999+
$16.79
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DRACS1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 22.2mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 22.2mm |
| Dynamic load C | 23.6 kN |
| Static load Co | 14.6 kN |
| Fatigue load limit Pu | 0.62 kN |
| Reference speed | 9000 rpm |
| Weight | 0.22 kg |
| d1 | 29.9mm |
| D1 | 44mm |
| r1r2 min | 1.1mm |
| a | 30mm |
| da min | 27mm |
| da max | 29.5mm |
| Da max | 45mm |
| ra max | 1mm |
