SKU: 3305-2RS-EU

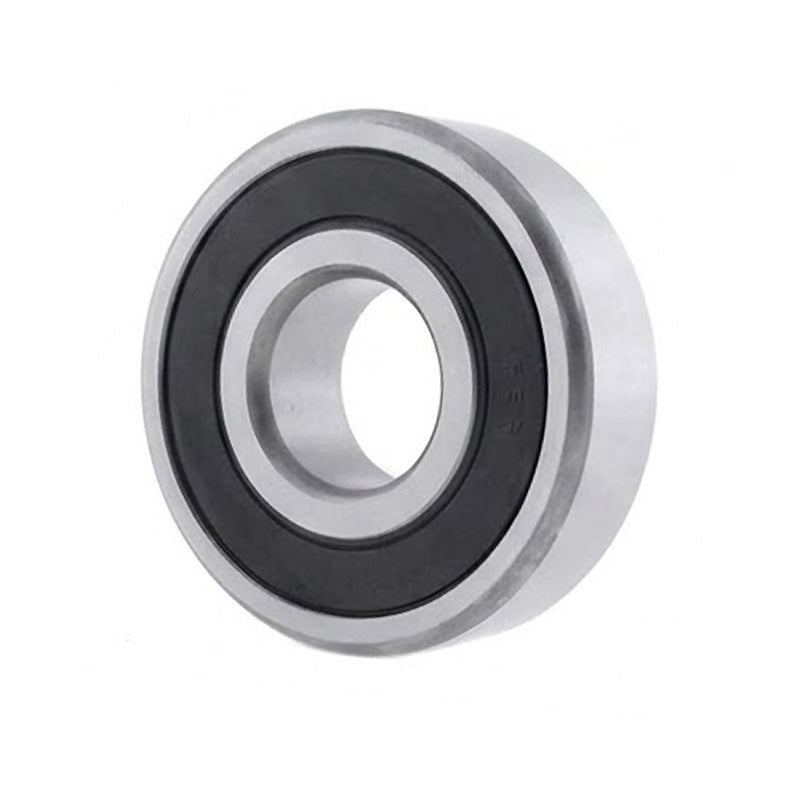

33052RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 25x62x25.4mm
33052RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 25x62x25.4mm
Regular price
$36.43
ex VAT
Regular price
Sale price
$36.43
ex VAT
In stock
Price Break
10+
$24.41
19+
$23.03
29+
$22.76
39+
$22.49
49+
$22.21
74+
$21.94
99+
$20.57
199+
$20.29
249+
$20.02
499+
$19.74
999+
$19.20
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DRACS1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 25.4mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| B | 25.4mm |
| Dynamic load C | 32 kN |
| Static load Co | 20.4 kN |
| Fatigue load limit Pu | 0.865 kN |
| Reference speed | 7500 rpm |
| Weight | 0.35 kg |
| d1 | 35.7mm |
| D1 | 53.4mm |
| r1r2 min | 1.1mm |
| a | 36mm |
| da min | 32mm |
| da max | 35.5mm |
| Da max | 55mm |
| ra max | 1mm |
