• Koyo 3305NR Double Row Angular Contact Ball Bearing with Snap Ring 25x62x25.4mm
  • Koyo
1 2

SKU: 3305.NR-KOY

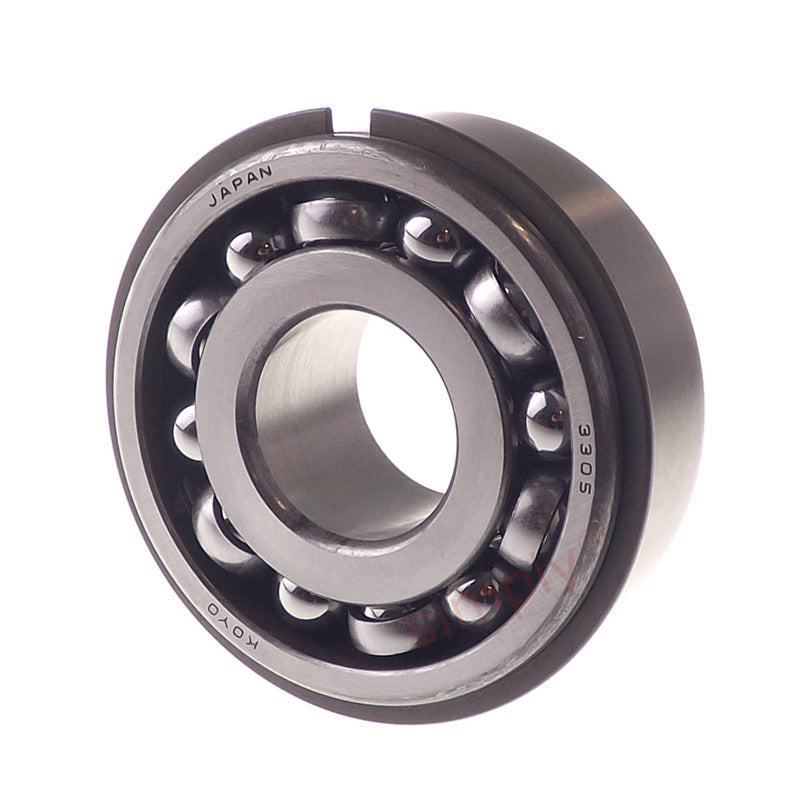

Koyo 3305NR Double Row Angular Contact Ball Bearing with Snap Ring 25x62x25.4mm

Koyo 3305NR Double Row Angular Contact Ball Bearing with Snap Ring 25x62x25.4mm
$73.46 ex VAT
$73.46 ex VAT
Sale Sold out

Equivalent to: 5305NR

In stock

Price Break
10+ $49.20
19+ $46.44
29+ $45.89
39+ $45.33
49+ $44.78
74+ $44.23
99+ $41.46
199+ $40.91
249+ $40.36
499+ $39.81
999+ $38.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Open Type Double Row Angular Contact Ball Bearings with Snap Ring: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, radial and axial loads
Brand / Quality:
Koyo - High Quality
Inside Diameter:
25mm
Outside Diameter:
62mm
Width:
25.4mm
Snap Ring:
Snap Ring
Technical
d 25
D 62
B 25.4
Dynamic Load 32kN
Static Load 20.4kN
Pu 0.865
Reference Speed 11000
Limiting Speed 11000
kg 0.35
d1 35.7
D1 53.4
r1r2 min 1.1
a 36
da min 32
Da max 55
ra max 1
Bw 3.2
Br 19
Snr 1.5
