SKU: 3309-2RS-EU

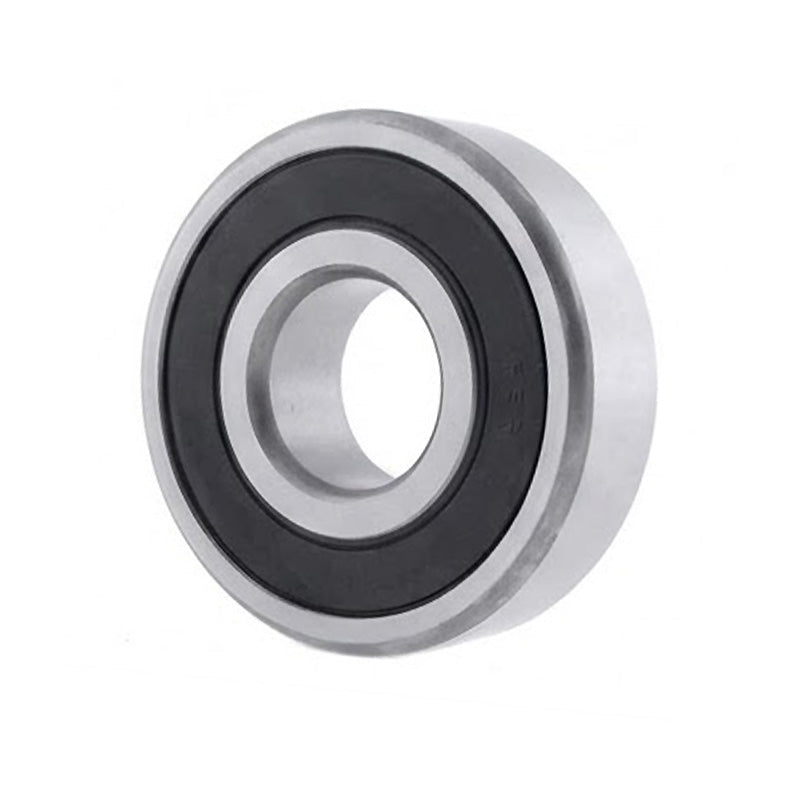

33092RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 45x100x39.7mm
33092RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 45x100x39.7mm
Regular price
$92.12
ex VAT
Regular price
Sale price
$92.12
ex VAT
In stock
Price Break
10+
$61.70
19+
$58.23
29+
$57.54
39+
$56.85
49+
$56.15
74+
$55.46
99+
$51.99
199+
$51.30
249+
$50.61
499+
$49.91
999+
$48.53
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DRACS1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 39.7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 39.7mm |
| Dynamic load C | 75 kN |
| Static load Co | 53 kN |
| Fatigue load limit Pu | 2.24 kN |
| Reference speed | 4800 rpm |
| Weight | 1.25 kg |
| d1 | 55.6mm |
| D1 | 90mm |
| r1r2 min | 1.5mm |
| a | 58mm |
| da min | 54mm |
| da max | 55.5mm |
| Da max | 91mm |
| ra max | 1.5mm |
