SKU: 3310-2RS-EU

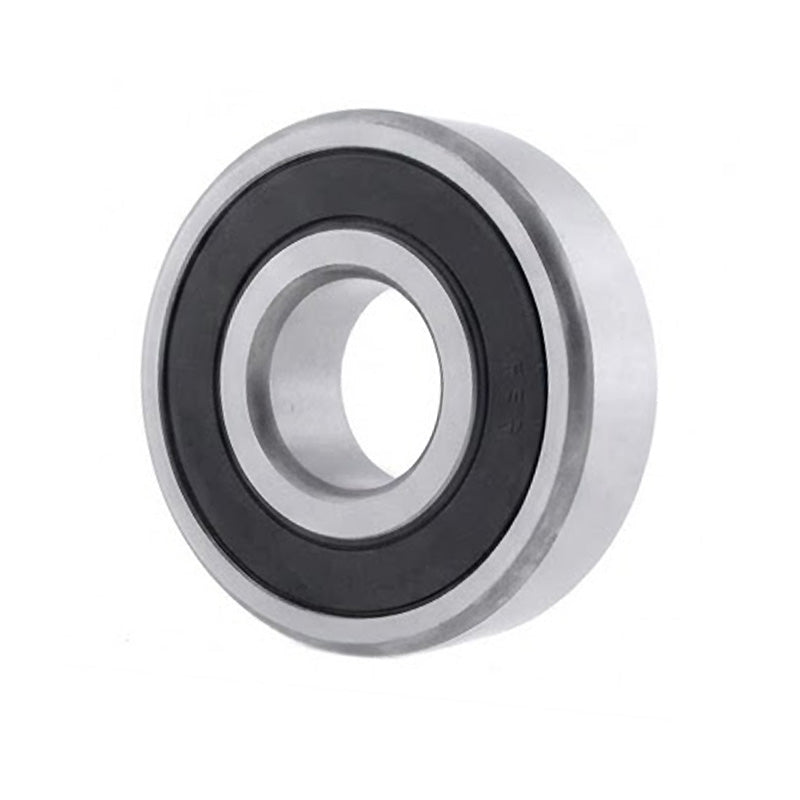

33102RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 50x110x44.4mm
33102RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 50x110x44.4mm
Regular price
$117.02
ex VAT
Regular price
Sale price
$117.02
ex VAT
In stock
Price Break
10+
$78.38
19+
$73.98
29+
$73.10
39+
$72.22
49+
$71.34
74+
$70.46
99+
$66.05
199+
$65.17
249+
$64.29
499+
$63.41
999+
$61.65
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DRACS1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 44.4mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 44.4mm |
| Dynamic load C | 90 kN |
| Static load Co | 64 kN |
| Fatigue load limit Pu | 2.75 kN |
| Reference speed | 4300 rpm |
| Weight | 1.7 kg |
| d1 | 62mm |
| D1 | 99.5mm |
| r1r2 min | 2mm |
| a | 65mm |
| da min | 61mm |
| da max | 61.5mm |
| Da max | 99.5mm |
| ra max | 2mm |
