SKU: 3311-EU

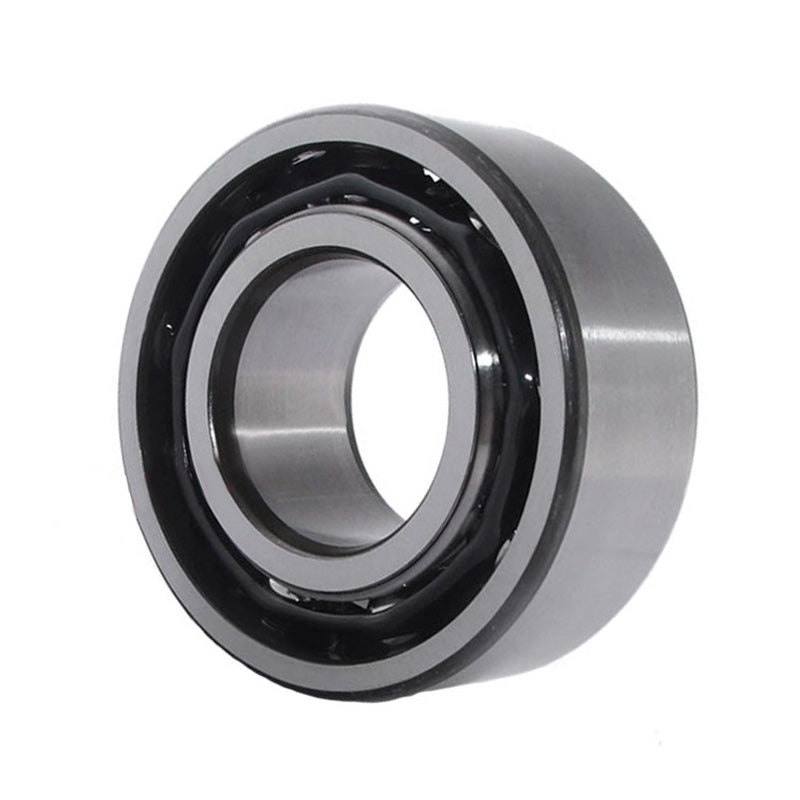

3311 Budget Double Row Angular Contact Ball Bearing 55x120x49.2mm
3311 Budget Double Row Angular Contact Ball Bearing 55x120x49.2mm
Regular price
$99.61
ex VAT
Regular price
Sale price
$99.61
ex VAT
In stock
Price Break
10+
$66.72
19+
$62.97
29+
$62.23
39+
$61.48
49+
$60.73
74+
$59.98
99+
$56.23
199+
$55.48
249+
$54.73
499+
$53.98
999+
$52.48
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DRAC1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 49.2mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 120mm |
| B | 49.2mm |
| Dynamic load C | 112 kN |
| Static load Co | 81.5 kN |
| Fatigue load limit Pu | 3.45 kN |
| Reference speed | 5300 rpm |
| Limiting speed | 5300 rpm |
| Weight | 2.55 kg |
| d1 | 68.4mm |
| D1 | 109mm |
| r1r2 min | 2mm |
| a | 72mm |
| da min | 66mm |
| Da max | 109mm |
| ra max | 2mm |
