SKU: 3312-2RS-EU

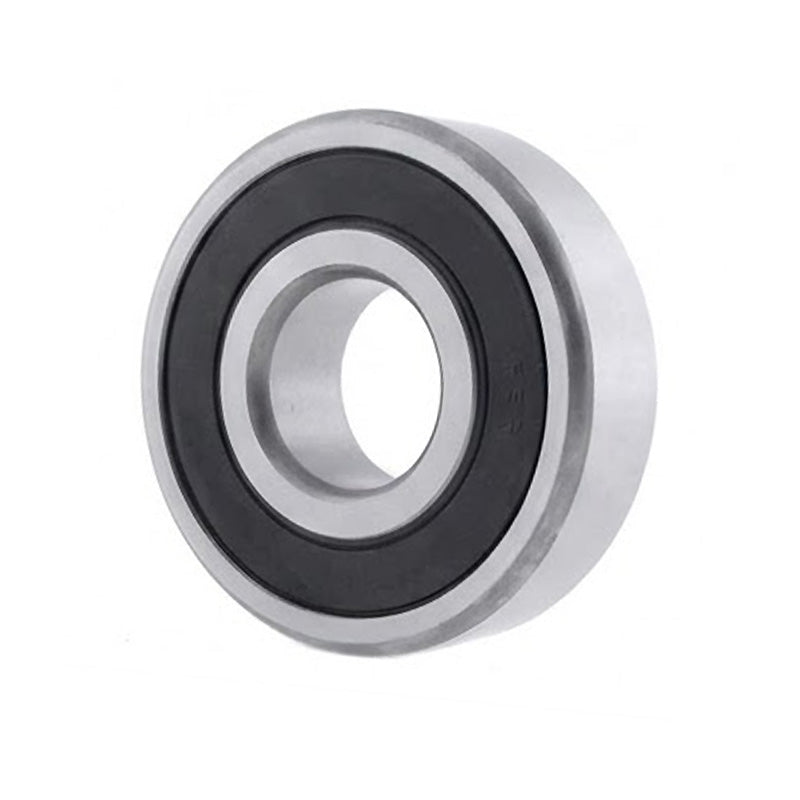

33122RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 60x130x54mm
33122RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 60x130x54mm
Regular price
$92.15
ex VAT
Regular price
Sale price
$92.15
ex VAT
In stock
Price Break
10+
$61.72
19+
$58.25
29+
$57.56
39+
$56.86
49+
$56.17
74+
$55.48
99+
$52.01
199+
$51.32
249+
$50.62
499+
$49.93
999+
$48.54
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DRACS1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 54mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 130mm |
| B | 54mm |
| Dynamic load C | 127 kN |
| Static load Co | 95 kN |
| Fatigue load limit Pu | 4.05 kN |
| Weight | 2.8 kg |
| d1 | 73.4mm |
| D1 | 118mm |
| r1r2 min | 2.1mm |
| a | 78mm |
| da min | 72mm |
| da max | 73mm |
| Da max | 118mm |
| ra max | 2mm |
