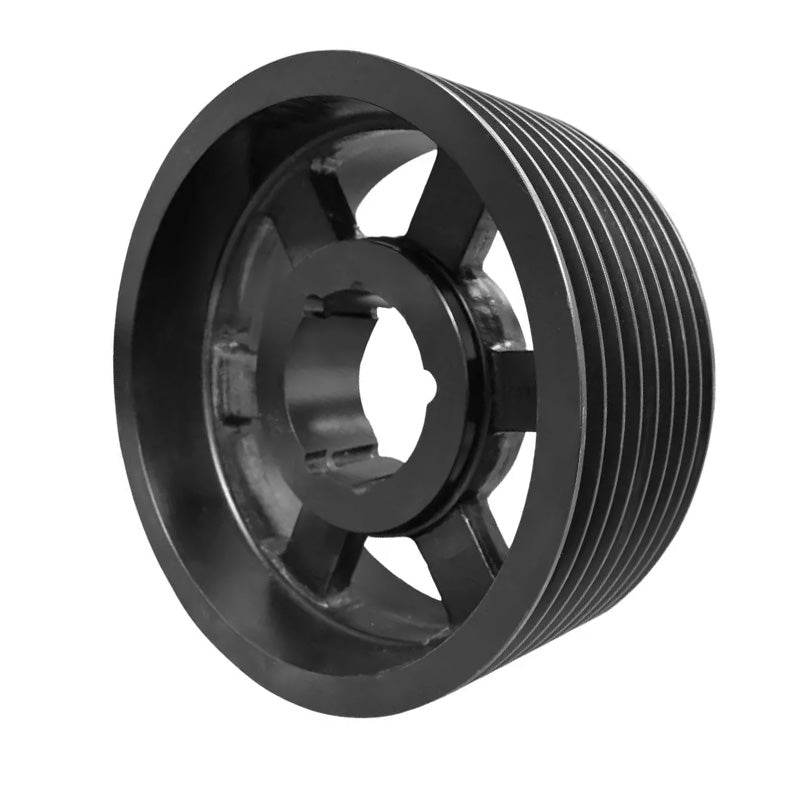

• 335X8SPB 335mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)
  • 335X8SPB 335mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)
1 2

SKU: 335SPB8-MB

335X8SPB 335mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)

335X8SPB 335mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)
$279.62 ex VAT
$279.62 ex VAT
Sale Sold out

In stock

Price Break
3+ $187.30
5+ $176.78
9+ $174.67
19+ $172.57
49+ $170.47
74+ $168.36
99+ $157.84
199+ $155.73
249+ $153.63
499+ $151.53
999+ $147.32

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
8
Outside Diameter:
342mm
Pitch Diameter:
335mm
Max Bore:
90mm
Technical
Number of Grooves 8
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3535+tapered+locking+bush">3535 Click Here</a>
Pitch Diameter B 335mm
Overall Outer Diameter C 342mm
Max Bore A 90mm
Overall Sheave Depth F 158mm
Bush Seat Length G 89mm
Inner Recess Length H 34.5mm
