SKU: 335SPC3-MB

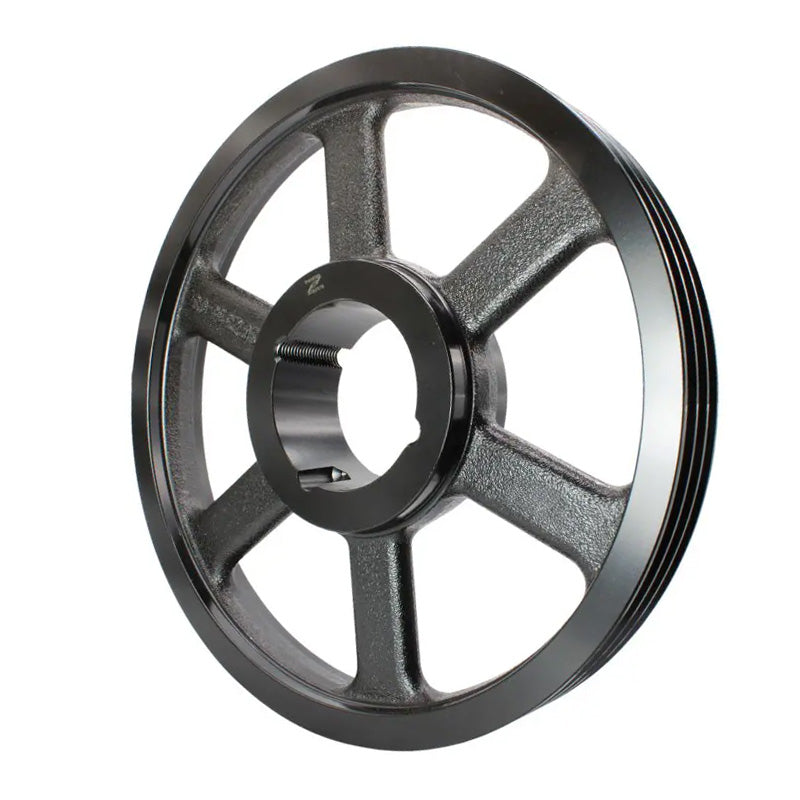

335X3SPC 335mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)

Name: 335X3SPC 335mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
Brand: Major Brand
SKU: 335SPC3-MB
Price: 209.27 USD
Availability: InStock

$209.27 ex VAT

Sale Sold out

In stock

Price Break

3+ $140.18

5+ $132.30

9+ $130.73

19+ $129.15

49+ $127.58

74+ $126.00

99+ $118.13

199+ $116.55

249+ $114.98

499+ $113.40

999+ $110.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Major Brand - High Quality
Grooves:: 3
Outside Diameter:: 345.2mm
Pitch Diameter:: 335mm
Max Bore:: 90mm

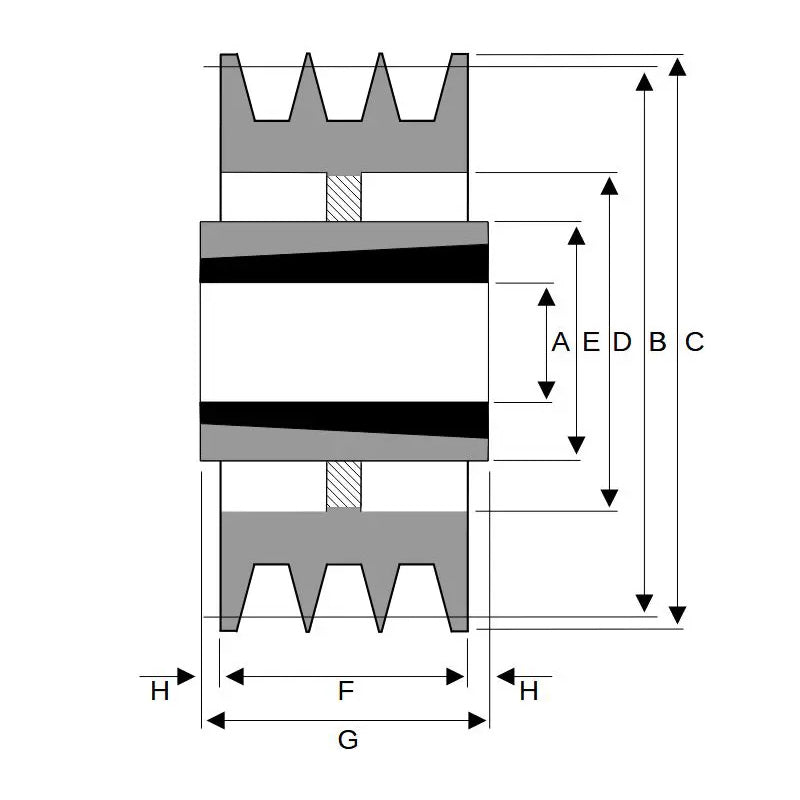

Technical

Number of Grooves	3
Bush	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3535+tapered+locking+bush">3535 Click Here</a>
Pitch Diameter B	335mm
Overall Outer Diameter C	345.2mm
Max Bore A	90mm
Outer Hub Diameter E	175mm
Overall Sheave Depth F	85mm
Bush Seat Length G	65mm
Inner Recess Diameter D	283mm
Inner Recess Length H	10mm
