SKU: 35-1-NO30-MB
Branded 35-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/8 inch Pitch
Branded 35-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/8 inch Pitch
Regular price
$5.70
ex VAT
Regular price
Sale price
$5.70
ex VAT
Equivalent to: 35-1-DOL
In stock
Price Break
2+
$3.82
5+
$3.61
10+
$3.56
29+
$3.52
49+
$3.48
75+
$3.43
100+
$3.22
200+
$3.18
250+
$3.13
500+
$3.09
1000+
$3.00
Quantity
Couldn't load pickup availability
Description
Description

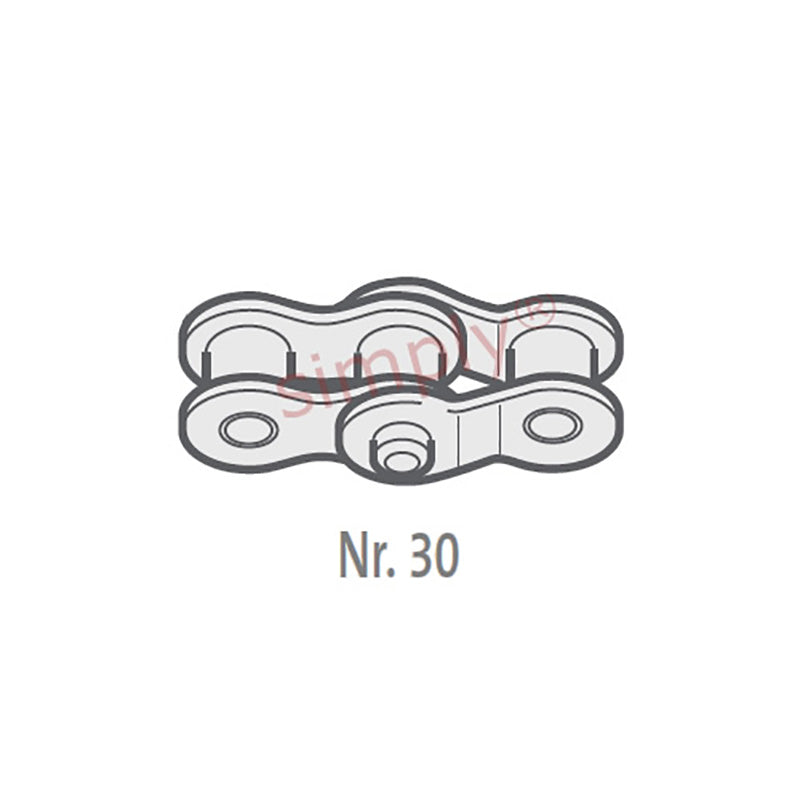

Branded DOL / No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 4.77mm |
| Roller Diameter max (C) | 5.08mm |
| Plate Height max (D) | 8.95mm |
| Plate Width Inner max (E) | 1.2mm |
| Plate Width Outer max (F) | 1.2mm |
| Pin Diameter max (G) | 3.58mm |
| Pin Length max (H1) | 12.15mm |
| Connecting Link Extension max (J) | 0.949999999999999mm |
| ISO606 Tensile Strength min | 7900 N |
| Weight | 0.008kg/m |
