• Renold SD 35-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 3/8 inch Pitch
  • Renold
1 2

SKU: 35-1-SD-NO12-RENOLD

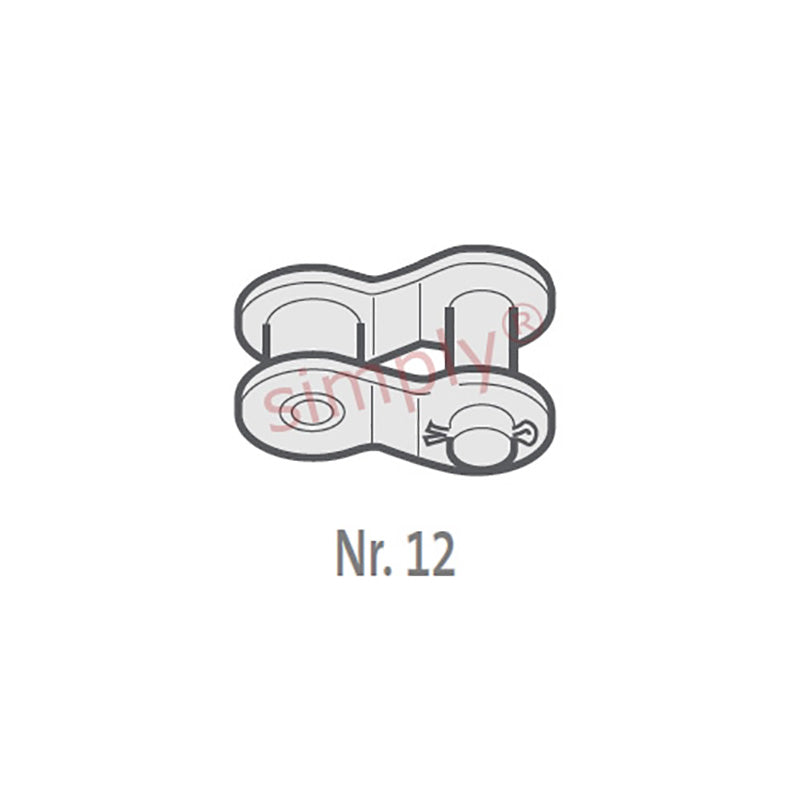

Renold SD 35-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 3/8 inch Pitch

Renold SD 35-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 3/8 inch Pitch
$8.32 ex VAT
$8.32 ex VAT
Sale Sold out

In stock

Price Break
2+ $5.57
5+ $5.26
10+ $5.19
29+ $5.13
49+ $5.07
75+ $5.00
100+ $4.69
200+ $4.63
250+ $4.57
500+ $4.50
1000+ $4.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
9.53mm = 0.375 (3/8) inch
Technical
Pitch (A) 0.375 inch
Pitch (A) 9.525mm
Inside Width min (B) 4.77mm
Roller Diameter max (C) 5.08mm
Plate Height max (D) 8.95mm
Plate Width Inner max (E) 1.2mm
Plate Width Outer max (F) 1.2mm
Pin Diameter max (G) 3.58mm
Pin Length max (H1) 12.15mm
Connecting Link Extension max (J) 0.949999999999999mm
ISO606 Tensile Strength min 7900 N
Weight 0.008kg/m
