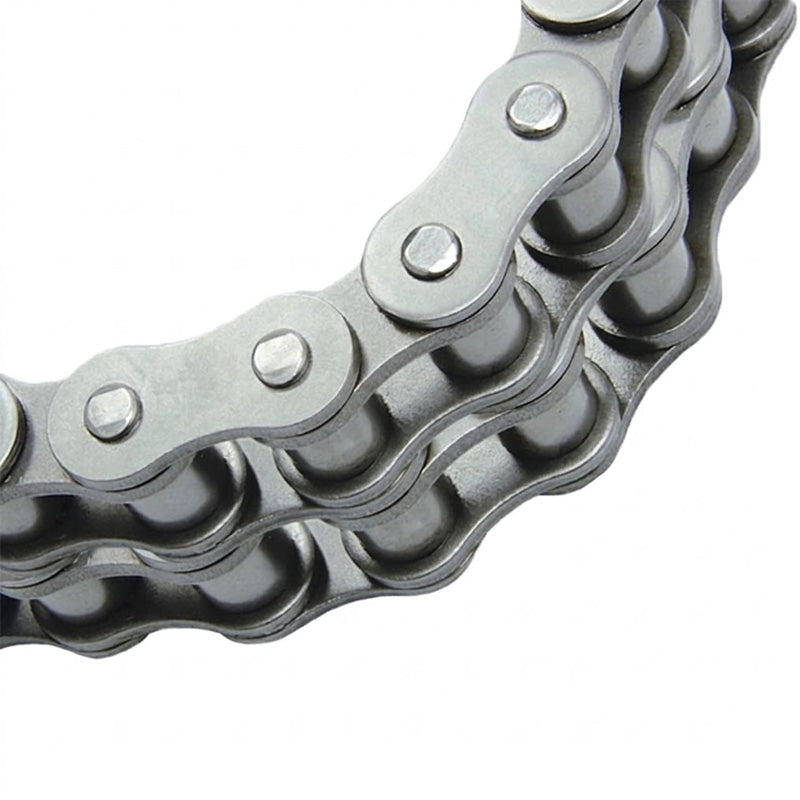

• Branded ANSI/ASA35-2 Duplex Roller Chain 3/8 inch Pitch 5 Metres
1 1

SKU: 35-2-5MTR-MB

Branded ANSI/ASA35-2 Duplex Roller Chain 3/8 inch Pitch 5 Metres

Branded ANSI/ASA35-2 Duplex Roller Chain 3/8 inch Pitch 5 Metres
$56.34 ex VAT
$56.34 ex VAT
Sale Sold out

In stock

Price Break
2+ $37.74
5+ $35.62
10+ $35.19
29+ $34.77
49+ $34.35
75+ $33.92
100+ $31.80
200+ $31.38
250+ $30.95
500+ $30.53
1000+ $29.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
9.53mm = 0.375 (3/8) inch
Technical
Pitch (P) 9.53mm = 0.375 (3/8) inch
Roller Diameter (D1 max) 5.08mm
Width between inner plates (B1 min) 4.77mm
Pin dia meter (D2 max) 3.58mm
Pin length (L max) 22.5mm
Pin length (Lc max) 23.3mm
Inner plate depth (H2 max) 9mm
Plate thickness (T max) 1.3mm
Ultimate tensile strength (Q min) kN/LB 15.80/3591
Average tensile strength (Q0) kN 19.7
Transverse pitch (Pt) mm 10.13
Weight per meter (q) kg/m 0.63
