SKU: 351554B.MB

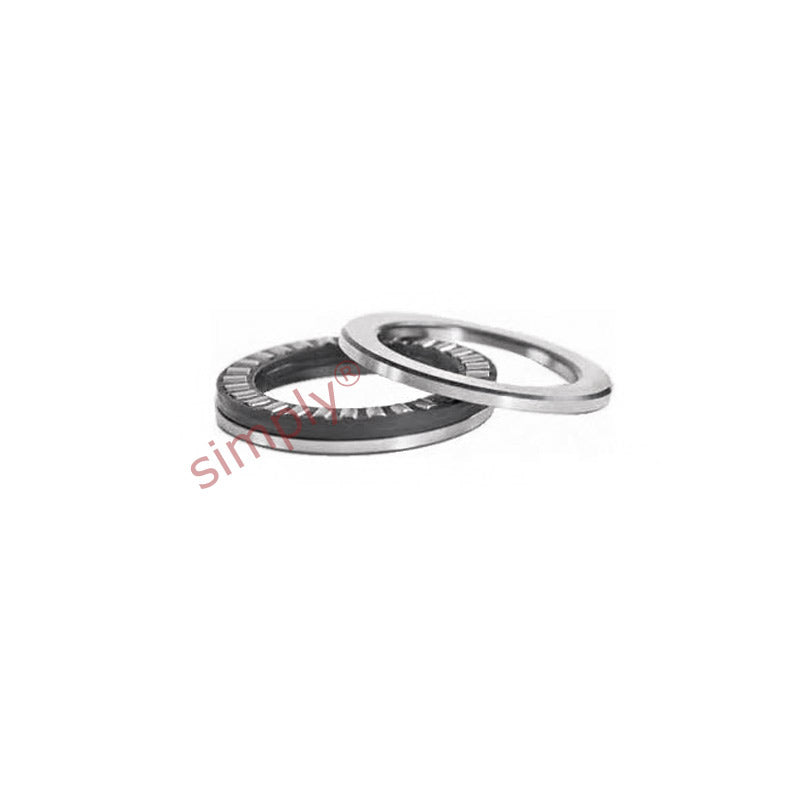

Major Brand 351554B Cylindrical Roller Thrust Bearing 180x360x109mm
Major Brand 351554B Cylindrical Roller Thrust Bearing 180x360x109mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 180mm
- Outside Diameter:
- 360mm
- Width:
- 109mm
Technical
Technical
| d | 180mm |
|---|---|
| D | 360mm |
| H | 109mm |
| Dynamic load C | 1900 kN |
| Static load Co | 7200 kN |
| Fatigue load limit Pu | 600 kN |
| Min load factor A | 4.1 |
| Reference speed | 260 rpm |
| Limiting speed | 530 rpm |
| Weight | 56.5 kg |
