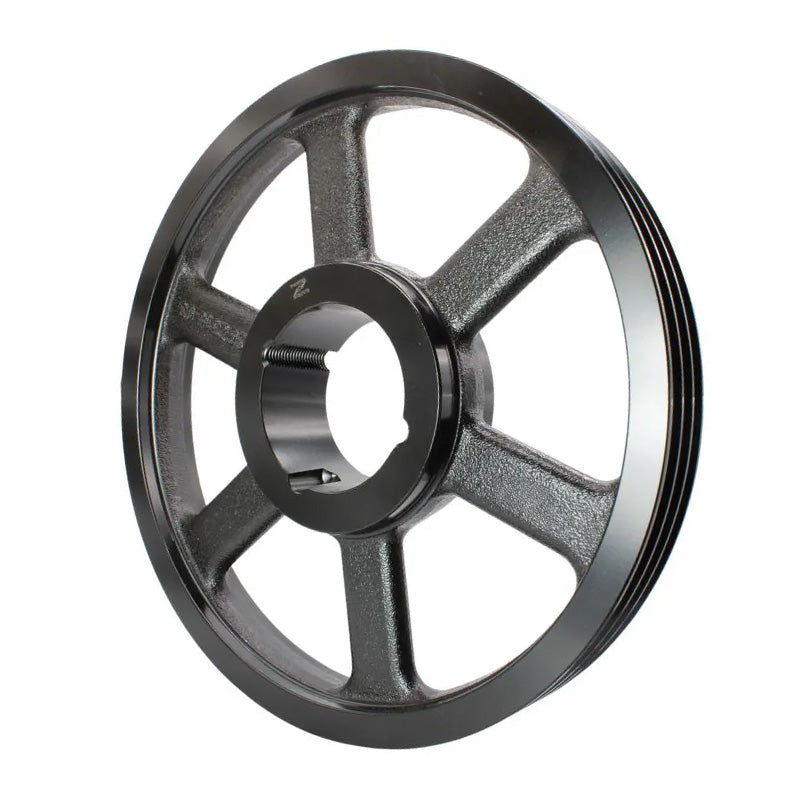

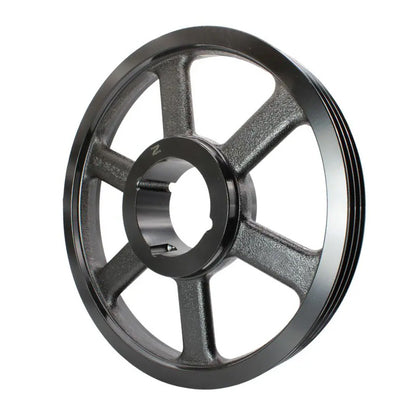

• 355X3SPA 355mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
  • 355X3SPA 355mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
1 2

SKU: 355SPA3-MB

355X3SPA 355mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)

355X3SPA 355mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
$135.13 ex VAT
$135.13 ex VAT
Sale Sold out

In stock

Price Break
3+ $90.51
5+ $85.43
9+ $84.41
19+ $83.40
49+ $82.38
74+ $81.36
99+ $76.28
199+ $75.26
249+ $74.24
499+ $73.23
999+ $71.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
3
Outside Diameter:
361.2mm
Pitch Diameter:
355mm
Max Bore:
75mm

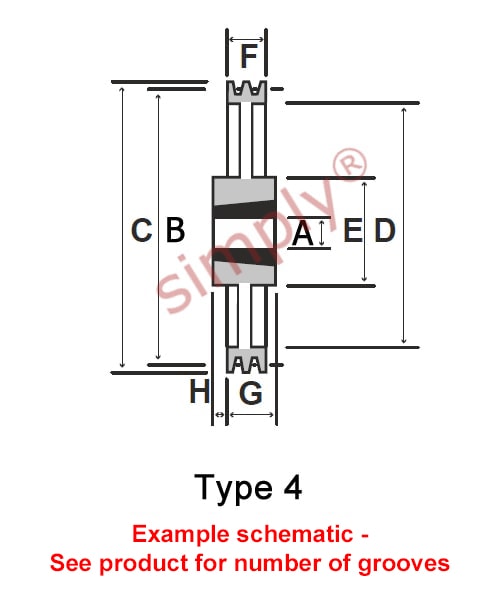

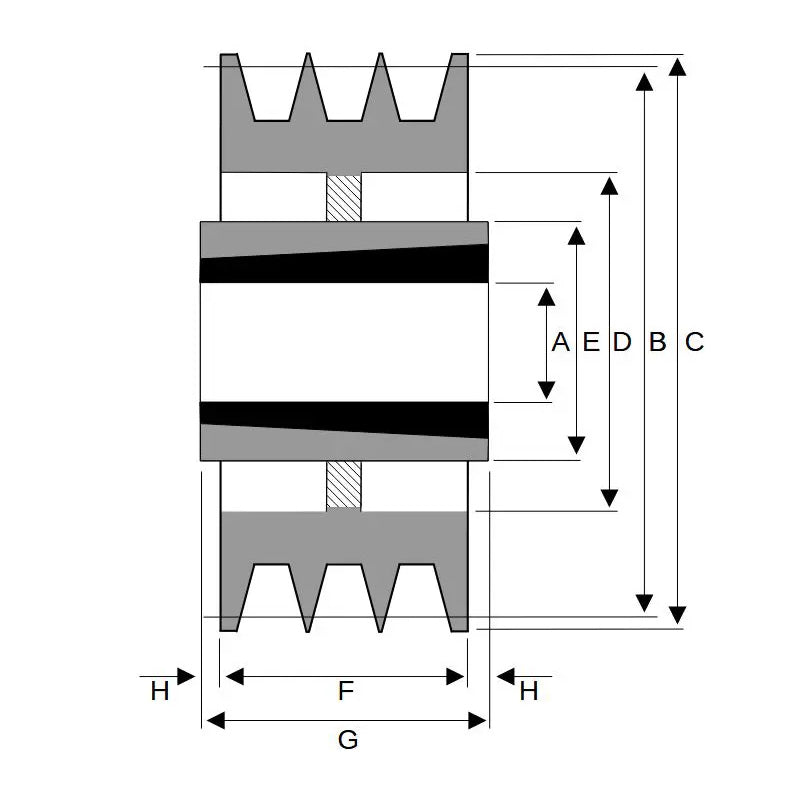

Technical
Number of Grooves 3
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 355mm
Overall Outer Diameter C 361.2mm
Max Bore A 75mm
Outer Hub Diameter E 159mm
Overall Sheave Depth F 50mm
Bush Seat Length G 51mm
Inner Recess Diameter D 320mm
Inner Recess Length H 0.5mm
