• 355X4SPA 355mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
  • 355X4SPA 355mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
1 2

SKU: 355SPA4-MB

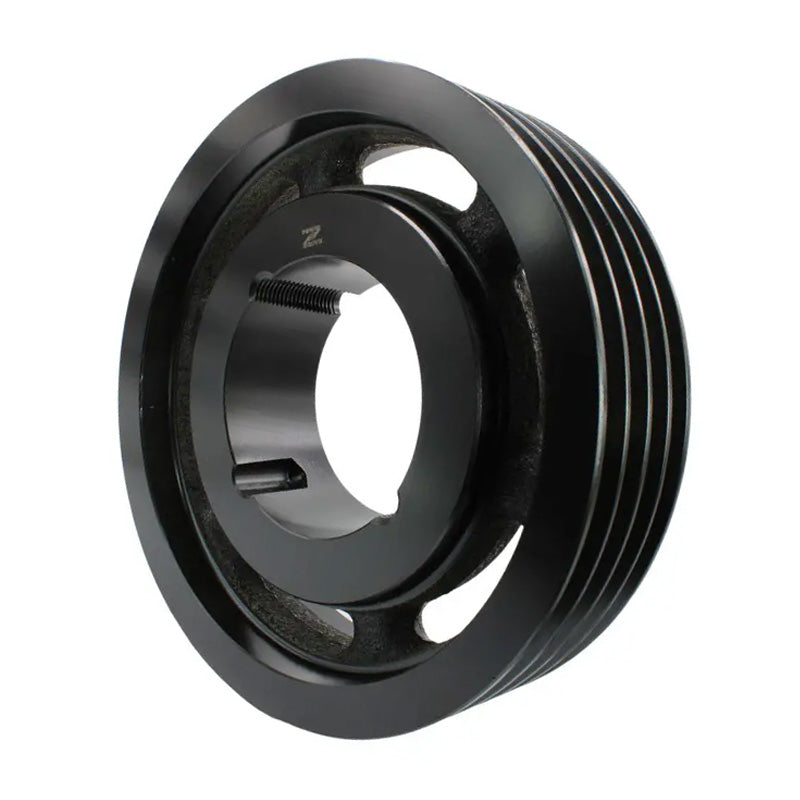

355X4SPA 355mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

355X4SPA 355mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$122.59 ex VAT
$122.59 ex VAT
Sale Sold out

In stock

Price Break
3+ $82.11
5+ $77.50
9+ $76.57
19+ $75.65
49+ $74.73
74+ $73.80
99+ $69.19
199+ $68.27
249+ $67.35
499+ $66.42
999+ $64.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
361.2mm
Pitch Diameter:
355mm
Max Bore:
75mm

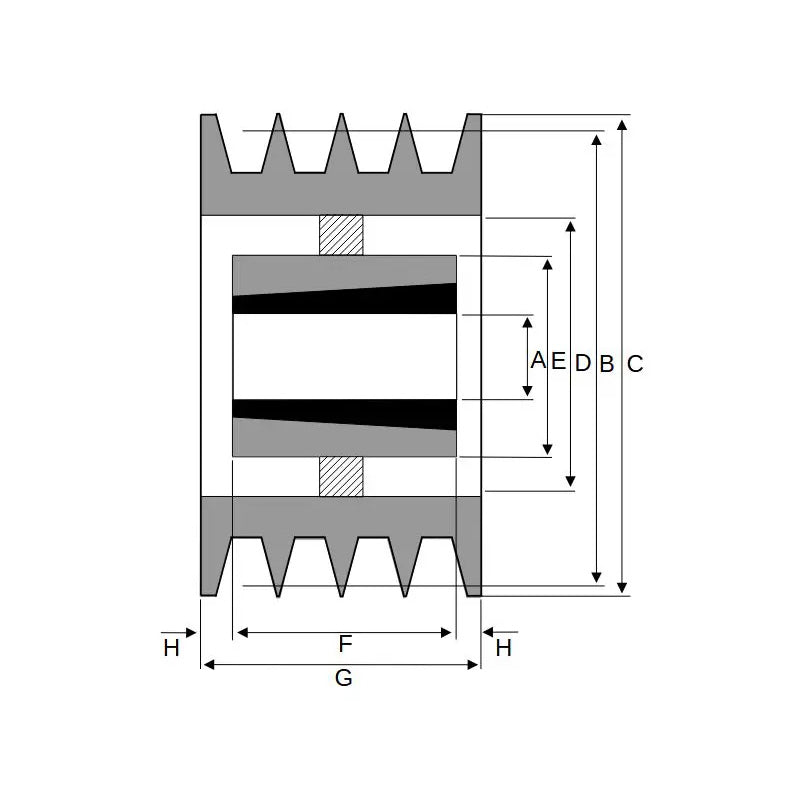

Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 355mm
Overall Outer Diameter C 361.2mm
Max Bore A 75mm
Outer Hub Diameter E 159mm
Overall Sheave Depth F 65mm
Bush Seat Length G 51mm
Inner Recess Diameter D 320mm
Inner Recess Length H 7mm
