• 355X5SPA 355mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
  • 355X5SPA 355mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 2

SKU: 355SPA5-MB

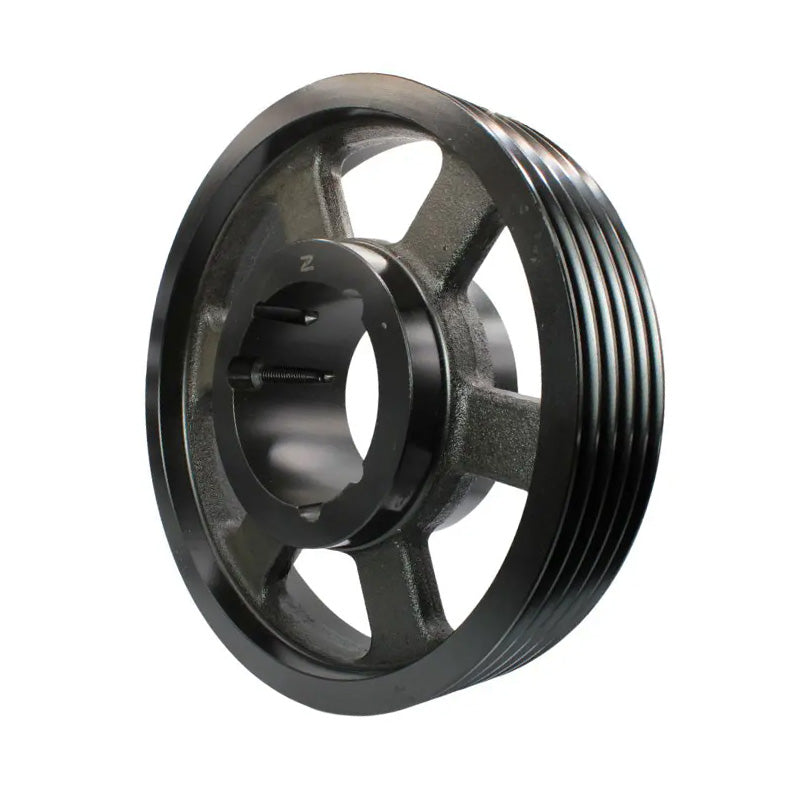

355X5SPA 355mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

355X5SPA 355mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$153.66 ex VAT
$153.66 ex VAT
Sale Sold out

In stock

Price Break
3+ $102.93
5+ $97.14
9+ $95.99
19+ $94.83
49+ $93.67
74+ $92.52
99+ $86.73
199+ $85.58
249+ $84.42
499+ $83.27
999+ $80.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
361.2mm
Pitch Diameter:
355mm
Max Bore:
90mm

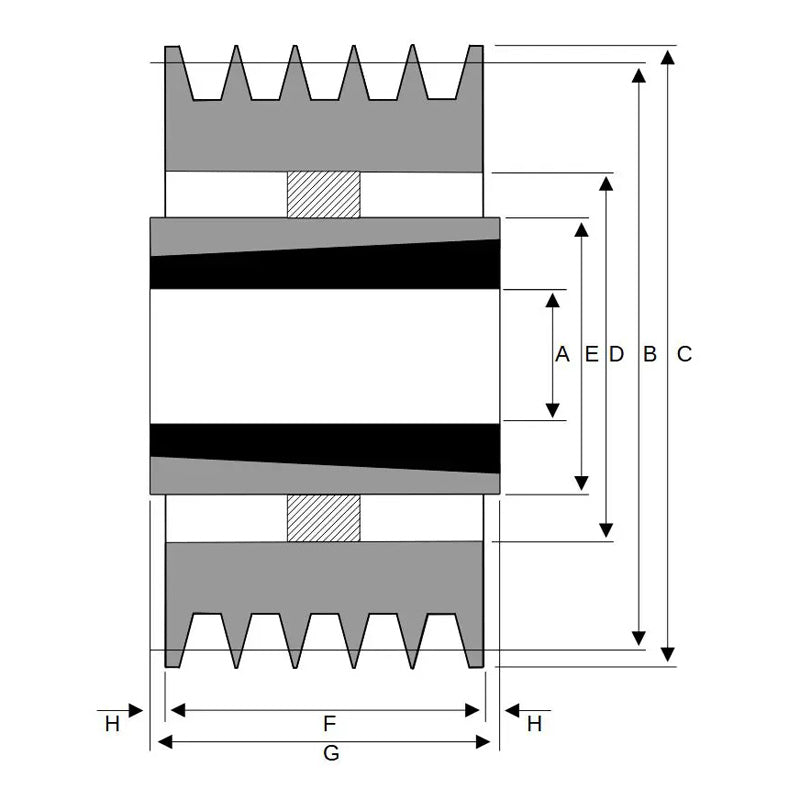

Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 355mm
Overall Outer Diameter C 361.2mm
Max Bore A 90mm
Outer Hub Diameter E 175mm
Overall Sheave Depth F 80mm
Bush Seat Length G 65mm
Inner Recess Diameter D 320mm
Inner Recess Length H 4.5mm
