• 355X4SPB 355mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
  • 355X4SPB 355mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
1 2

SKU: 355SPB4-MB

355X4SPB 355mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

355X4SPB 355mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$186.67 ex VAT
$186.67 ex VAT
Sale Sold out

In stock

Price Break
3+ $125.04
5+ $118.01
9+ $116.61
19+ $115.20
49+ $113.80
74+ $112.40
99+ $105.37
199+ $103.97
249+ $102.56
499+ $101.16
999+ $98.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
362.6mm
Pitch Diameter:
355mm
Max Bore:
90mm

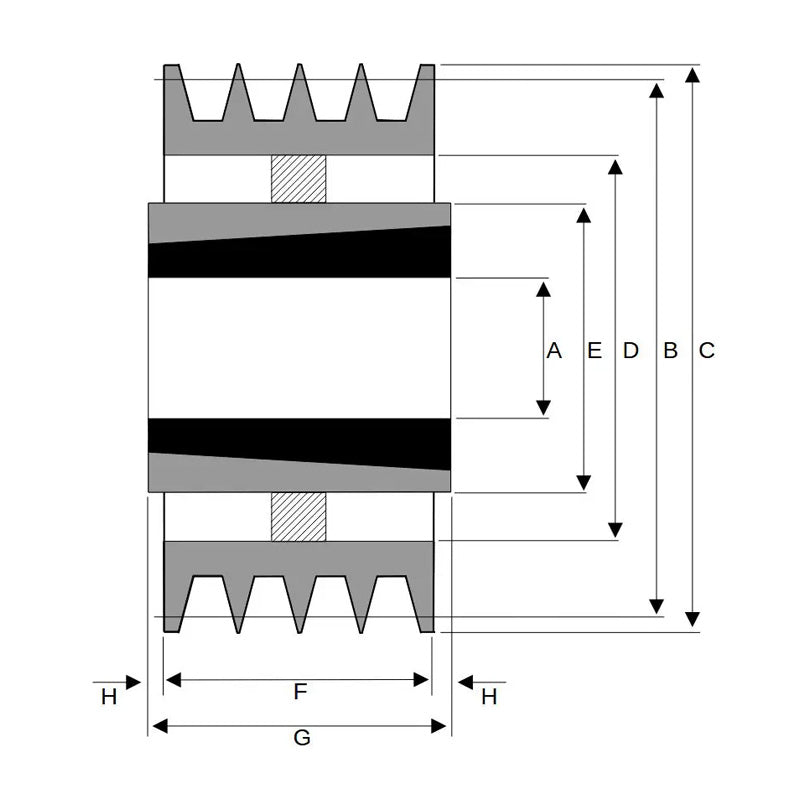

Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3535+tapered+locking+bush">3535 Click Here</a>
Pitch Diameter B 355mm
Overall Outer Diameter C 362.6mm
Max Bore A 90mm
Outer Hub Diameter E 175mm
Overall Sheave Depth F 82mm
Bush Seat Length G 89mm
Inner Recess Diameter D 312mm
Inner Recess Length H 3.5mm
