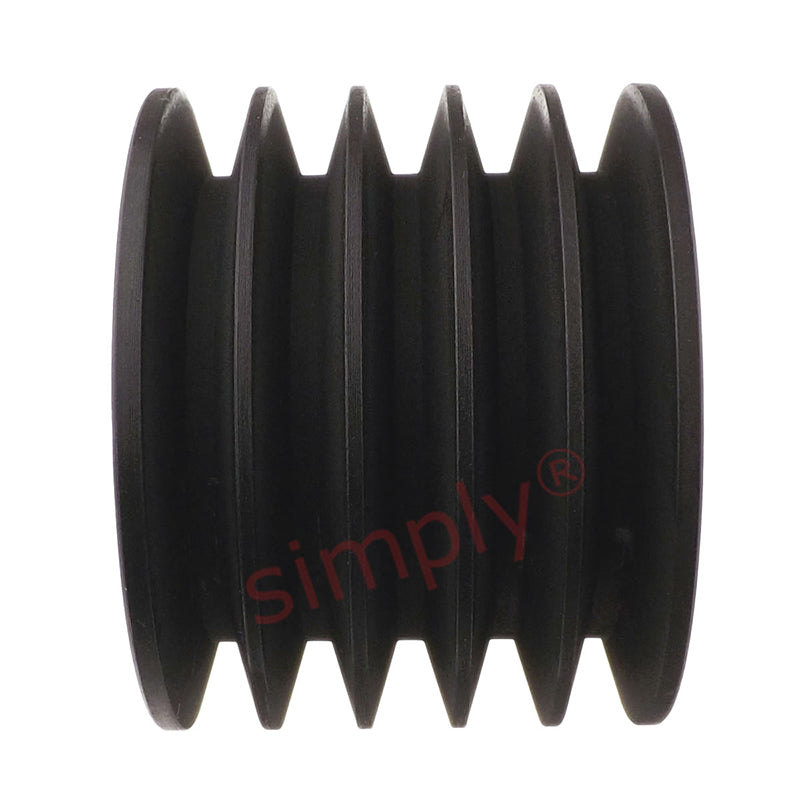

• 355X5SPC 355mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 1

SKU: 355SPC5-MB

355X5SPC 355mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

355X5SPC 355mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$290.49 ex VAT
$290.49 ex VAT
Sale Sold out

In stock

Price Break
3+ $194.58
5+ $183.65
9+ $181.47
19+ $179.28
49+ $177.09
74+ $174.91
99+ $163.98
199+ $161.79
249+ $159.60
499+ $157.42
999+ $153.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
365.2mm
Pitch Diameter:
355mm
Max Bore:
90mm
Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 355mm
Overall Outer Diameter C 365.2mm
Max Bore A 90mm
Outer Hub Diameter E 175mm
Overall Sheave Depth F 136mm
Bush Seat Length G 65mm
Inner Recess Diameter D 298mm
Inner Recess Length H 35.5mm
